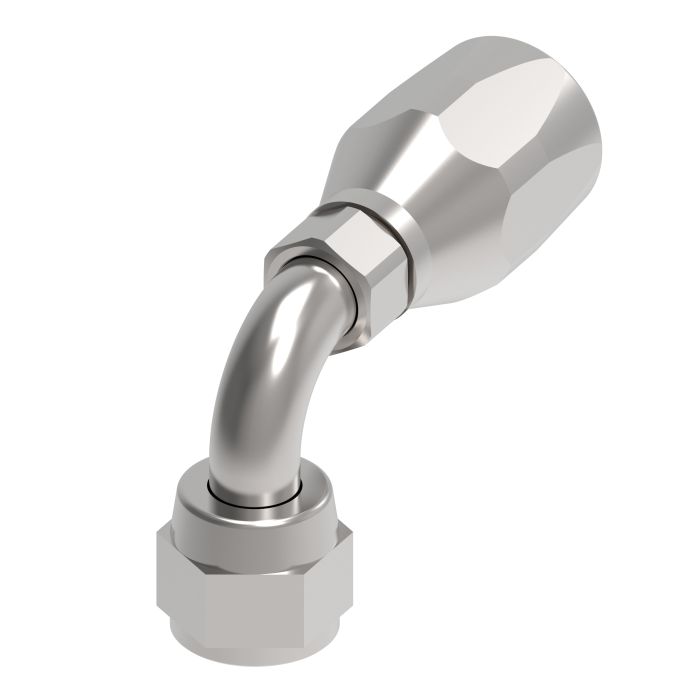

main product photo

Aeroquip Reuse FIT F JIC SWIV

Ask A Question

Description & Features

The Aeroquip Reuse FIT F JIC SWIV is a fitting assembly suitable for a wide range of applications, designed for durability and dependable performance in demanding hydraulic systems. This fitting helps to cut assembly times and boost production.

Featuring a female SAE 37° JIC end, this Aeroquip fitting is constructed from carbon steel. It has a drop dimension of 1.8200 and a width of 1.25. Designed for a hose dash size of -12.

SKU: FC5143-1212S

Supplier Part Number (MPN): FC5143-1212S

Specifications

Brand
Aeroquip® by Danfoss
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
2.24 in
Dimension Standards
SAE J514
Dimensions
0.61 in ID
Drop Dimensions
1.82 in
End Gender 1
Female
End Size 1
12
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
FC310 and FC510 Series Hoses
Hose Dash Size
12
Inside Diameter
0.61 in
Material
Steel
Material Construction
Carbon Steel
Series
FC5143 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12

Product Questions & Answers (1)

Question by: Vince B on May 8, 2025, 9:16 AM
Reckon this fitting'll hold up if I'm runnin' hydraulic fluid through it pretty much all day long?
Answer by: Customer Support on May 9, 2025, 2:20 PM
This Aeroquip fitting assembly is made from carbon steel, so it's built to be durable and dependable, even under demanding use in hydraulic systems.
