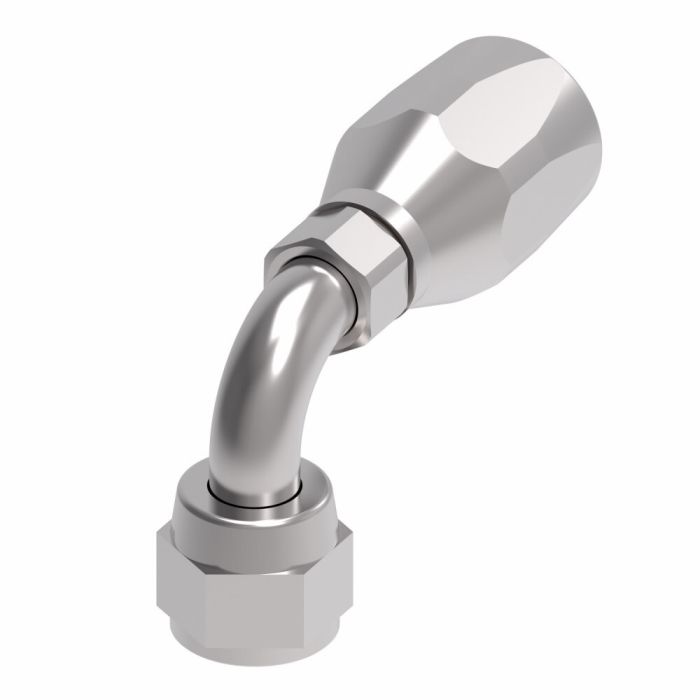

main product photo

AEROQUIP

Ask A Question

Description & Features

A carbon steel, SAE 37° JIC swivel fitting in a 90° short elbow configuration, this assembly is designed for -16 hose dash size connections and suited to a wide range of industrial hydraulic applications. The female SAE 37° end pairs with a line, hose, or tube end, providing a reusable and reliable connection where space-efficient routing is required. With a drop dimension of 2.390 inches and a product width of 1.18 inches, the short elbow profile supports compact installation in tight assemblies.

Part of the Aeroquip FC5143 Series, this fitting is built for durability and is engineered to reduce assembly time in production environments. The reusable design allows for field reassembly without requiring replacement fittings, making it a practical choice for maintenance-intensive hydraulic systems.

SKU: FC5143-1616S

Supplier Part Number (MPN): FC5143-1616S

Specifications

Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
2.73 in
Dimension Standards
SAE J514
Dimensions
0.82 in ID
Drop Dimensions
2.39 in
End Gender 1
Female
End Size 1
16
End Size 2
1 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
FC310 and FC510 Series Hoses
Hose Dash Size
16
Inside Diameter
0.82 in
Material
Steel
Material Construction
Carbon Steel
Series
FC5143 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rex A on Mar 25, 2026, 8:55 AM
What kinda applications is this fitting good for? Just tryin' to get a feel for its versatility.
Answer by: Customer Support on Mar 27, 2026, 6:26 AM
This fitting assembly works well in a wide range of industrial hydraulic applications, making it a pretty versatile piece of equipment.
