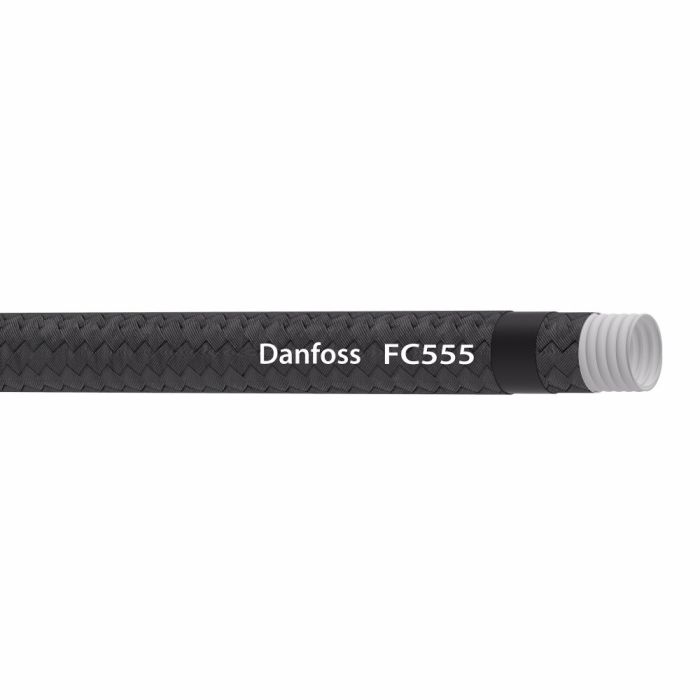

AQP HOSE

Description & Features

Aeroquip by Danfoss FC555 Series AQP HOSE is designed for transportation and air conditioning systems.

This black, conductive hose features a nylon tube with a polyester cover and 1-ply braid construction. It is compatible with multiple refrigerants and exceeds SAE J2064 standards, delivering performance and maximum uptime. The AQP HOSE has an R134a effusion rate of 0.97 kg/m2/yr at 80°C (0.20 lbs/ft2/yr at 180°F) and a minimum bend radius of 7 inches, with a minimum working temperature of -40 degrees.

SKU: FC555-20

Supplier Part Number (MPN): FC555-20

Specifications

Abrasion Resistance 28	Application Transportation and air conditioning systems.	Certifications SAE J2064	Color Black	Conductivity 30	Construction 1 Ply Braid	Cover Material Polyester	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Effusion Rate R134a effusion 0.97 kg/m2/yr at 80°C (0.20 lbs/ft2/yr at 180°F)	Features Deliver performance and maximum uptime\|Hoses exceed SAE J2064\|Compatible with multiple refrigerants	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 7	Minimum Bend Radius 7	Minimum Working Temperature -40	Product Width 1.65	Qualified Hose Fittings FJ3901 or Factory crimped	Reinforcement Material Polyester	Sub Brand Aeroquip	Supplier Part Number FC555-20	Tube Material Nylon	Product Weight 2.19 lbs

Product Questions & Answers (1)

Question by: Gene M on Mar 17, 2026, 2:43 PM

What size is this hose? I see -20, but what does that mean in regular numbers?

Answer by: Customer Support on Mar 19, 2026, 9:25 AM

That -20 refers to the dash size, which indicates the hose's inner diameter. In this case, -20 means the hose has an inner diameter of 1 1/4 inches.
