AEROQUIP POLYON FTG

Ask A Question

Description & Features

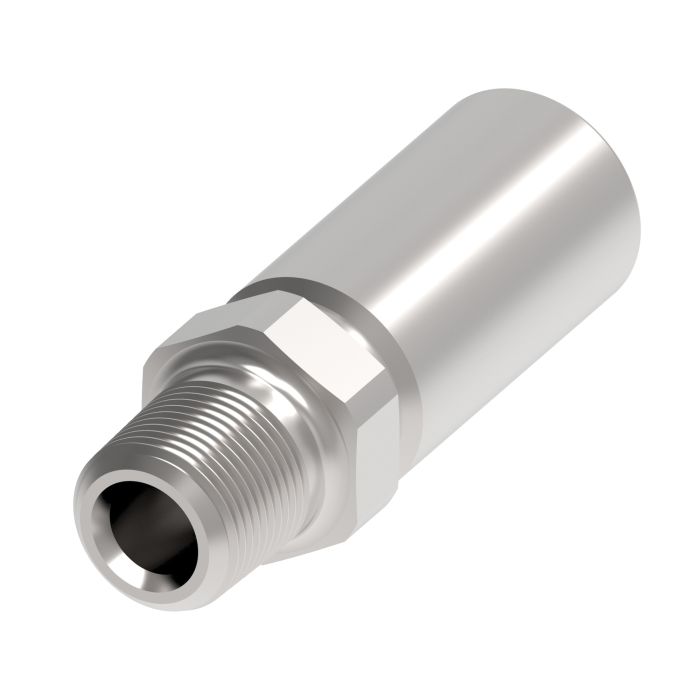

A carbon steel fitting assembly designed for low-pressure hydraulic hose connections, the Aeroquip Polyon Ftg connects a 1/8 in. male pipe thread (MPT) end to a -2 dash size hose or tube end. The female-to-male configuration supports straightforward in-line assembly in compact routing applications where a reliable threaded-to-hose transition is needed.

Constructed from carbon steel, this fitting is suited for use in hydraulic circuits handling fluids compatible with the Aeroquip Polyon series, fluid compatibility documentation is available through Eaton's published reference materials. At 0.1 lb and 0.69 in. wide, the fitting is compact and well-suited for space-constrained assemblies.

SKU: FC5805-0204S

Supplier Part Number (MPN): FC5805-0204S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.98 in
Compatible Hose ID
1/8 in
Connection Size 1
1/8 in
Connection Size 2
1/4 in
Connection Type
Hose, MNPT
Connection Type 1
Hose
Connection Type 2
Male NPTF
Construction Style
Crimp
Cut-Off Factor
1.36 in
Dimensions
1.98 in L
End Gender 1
Female
End Gender 2
Male
End Size 1
1/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
3130, 3740 and 37AL Series Hoses
Hex Size
5/8 in
Hose Dash Size
02
Inside Diameter
0.15 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Series
FC5805 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/8-27
Thread Type
NPTF

Product Questions & Answers (1)

Question by: Scott W on May 18, 2025, 5:43 PM
Will this fitting work with a standard hydraulic hose? I'm not seeing anything about the type of hose it fits.
Answer by: Customer Support on May 20, 2025, 4:04 PM
This Aeroquip fitting is designed for use with low-pressure hydraulic hose connections, specifically those in the Aeroquip Polyon series. It connects to a -2 dash size hose or tube end.
