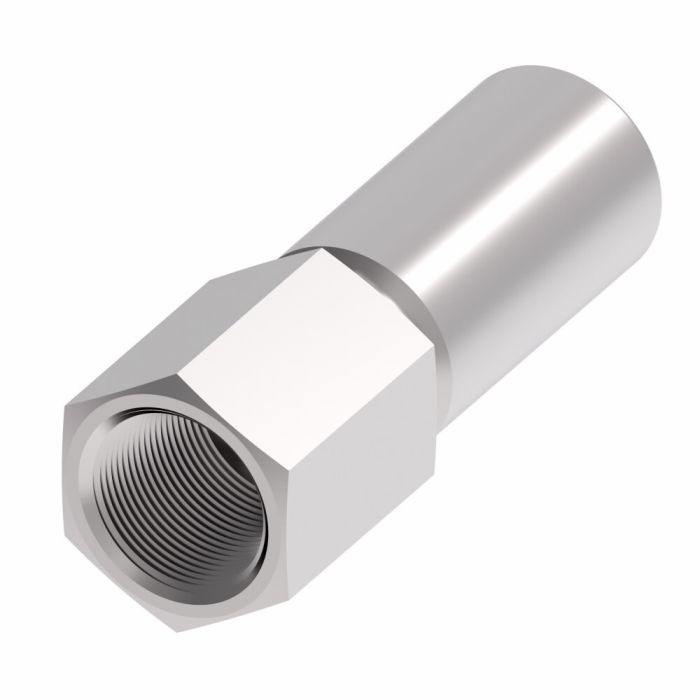

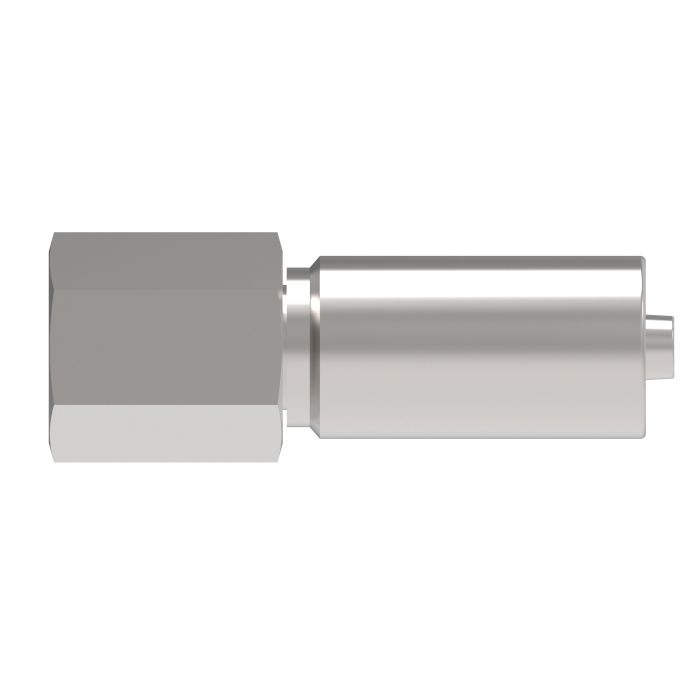

Aeroquip POLYON Hose FITTI

Description & Features

This Aeroquip POLYON Hose FITTI is made from carbon steel and features Dura-Kote plating, providing superior corrosion resistance and extending hose assembly life.

The FC5806 series crimp hose fitting has an innovative design to deliver enhanced performance and maximum uptime. It features a female FPT end with a 0.25" size, and a female line/hose/tube end with a -4 hose dash size.

SKU: FC5806-0404S

Supplier Part Number (MPN): FC5806-0404S

Alternate Part Numbers: C1CS58

Specifications

Brand Danfoss	a Dimensions 2.23 in	Angle Shape Straight	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type FNPT, Hose	Connection Type 1 Female NPTF	Connection Type 2 Hose	Construction Style Crimp	Cut-Off Factor 1.33 in	Dimensions 2.23 in L x 0.75 in W x 0.87 in H	Finish Zinc-Plated	Fitting Type Crimp Fitting	For Use With 3130, 37AL and 3740 Series Hoses	Hex Size 3/4 in	Hose Dash Size 04	Inside Diameter 0.15 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -40	Series FC5806 Series	Thread Sealant Without Thread Sealant	Thread Size 1/4-18

Product Questions & Answers (1)

Question by: Ray E on Mar 30, 2026, 7:17 PM

Will this fitting hold up to hydraulic fluid, or is it more for air lines and such?

Answer by: Customer Support on Apr 1, 2026, 4:50 PM

Dura-Kote plating on this Aeroquip fitting is specifically designed to provide superior corrosion resistance, which makes it well-suited for hydraulic applications where exposure to fluids is common.
