AEROQUIP

Description & Features

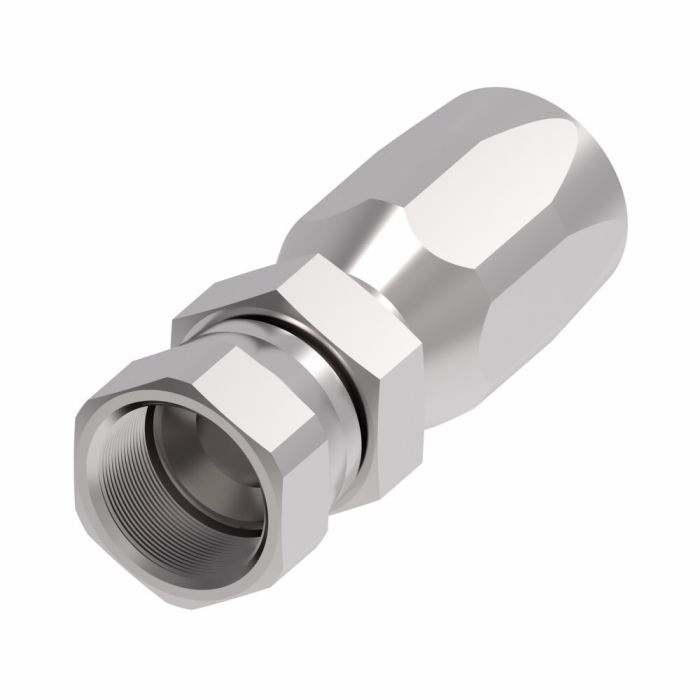

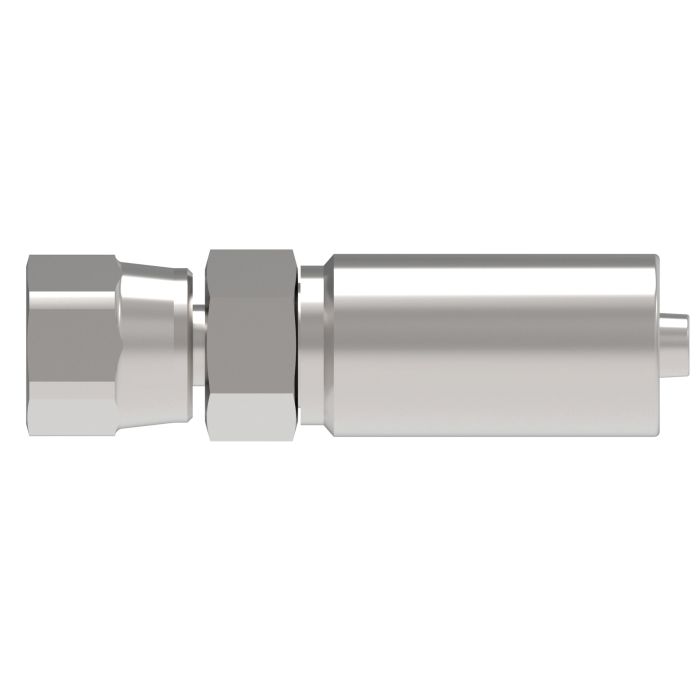

Designed for reliable performance, the Aeroquip fitting assembly is essential for industrial hydraulic applications. This product is part of the well-regarded Aeroquip brand, recognized for its durability and precision. As a hose fitting, it is engineered to ensure secure and efficient fluid connections, contributing to the overall integrity of hydraulic systems. The fitting assembly features a robust construction, providing a dependable link within complex systems.

Weighing only 0.1 lb, it is lightweight yet strong enough to withstand demanding conditions. The Aeroquip fitting assembly is compatible with a wide range of hydraulic fluids, ensuring versatility across various industrial applications. Documentation for fluid compatibility can be accessed via the provided [DocumentLink](http://eaton.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/pct_3249345.pdf), ensuring you have the necessary information for optimal use.

SKU: FC5810-0303S

Supplier Part Number (MPN): FC5810-0303S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.12 in	Compatible Hose ID 0.19 in	Connection Size 1 3/16 in	Connection Size 2 3/16 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 1.32 in	Dimensions 2.12 in L	End Connection Torque 103 to 118 ft-lb	End Size 1 03	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With 3130, 3740, 37AL and FC370 Series Hoses	Hex Size 0.563 in	Hose Dash Size 03	Inside Diameter 0.1 in	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 4000 psi	Series FC5810 Series	Thread Sealant Without Thread Sealant	Thread Size 3/8-24	Thread Type UNF

Product Questions & Answers (1)

Question by: Lance W on Jul 29, 2025, 8:18 PM

Reckon this fitting'll hold up with different kinds of hydraulic fluids?

Answer by: Customer Support on Jul 31, 2025, 5:02 PM

The Aeroquip fitting assembly is compatible with a wide range of hydraulic fluids, which should give you the versatility you need for various industrial applications. Documentation is available at the provided link for fluid compatibility.
