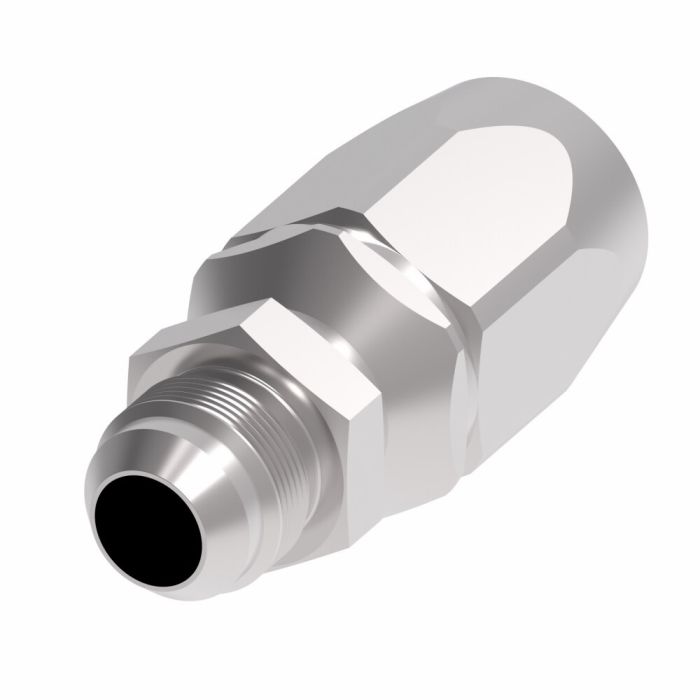

Aeroquip Reuse FIT 12 M JIC

Ask A Question

Description & Features

Constructed from carbon steel, this -12 dash size male JIC fitting is part of the Aeroquip FC5986 Series reusable hose fitting line. The SAE 37° flare end provides a reliable, leak-resistant connection suited to a wide range of hydraulic hose assemblies. As a reusable fitting, the Aeroquip Reuse Fit 12 M JIC is designed to be disassembled and reinstalled, reducing material waste and supporting faster turnaround during assembly or maintenance work.

The reusable design is well-suited to production environments where cut assembly times matter. Carbon steel construction delivers durability under typical hydraulic service conditions. The fitting connects on one end via SAE 37° male JIC flare and on the other via a hose/line interface, making it compatible with standard hydraulic hose configurations at the -12 size.

SKU: FC5986-1212S

Supplier Part Number (MPN): FC5986-1212S

Specifications

Brand
Aeroquip® by Danfoss
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Hose, Male JIC
Connection Type 1
Hose
Connection Type 2
Male SAE 37 deg JIC Flare
Construction Style
Reusable
Cut-Off Factor
1.85 in
Dimensions
3.72 in L x 1.125 in W x 1.29 in H
End Gender 1
Male
End Size 1
12
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
GH793 Series Hoses
Hose Dash Size
12
Inside Diameter
0.61 in
Material
Steel
Material Construction
Carbon Steel
Series
FC5986 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12

Product Questions & Answers (1)

Question by: Marvin T on Sep 2, 2025, 9:52 AM
Is this fitting good for hydraulic lines on farm equipment, something that takes a bit of a beating?
Answer by: Customer Support on Sep 4, 2025, 9:13 AM
Constructed from carbon steel, this Aeroquip fitting offers good durability for standard hydraulic applications. Its reusable design can also be handy for quick repairs in the field.
