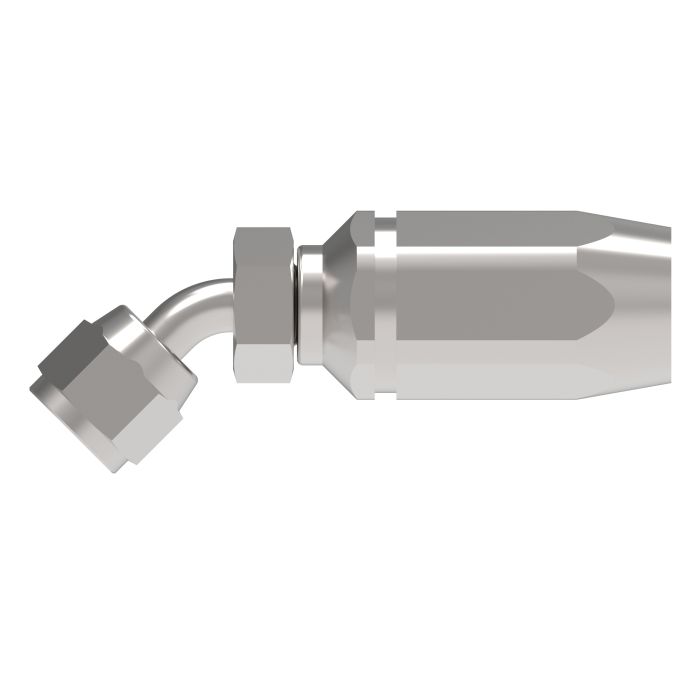

Aeroquip Reuse FIT 6 F JIC SWV

Ask A Question

Description & Features

Constructed from carbon steel, this SAE 37° JIC swivel fitting is designed for reusable assembly with -6 dash size hose connections. The female JIC end features a 9/16-inch thread size, making it compatible with standard SAE 37° flare connections commonly found in hydraulic hose and tube assemblies.

The Aeroquip Reuse Fit 6 F JIC Swv belongs to Eaton Aeroquip's FC5990 Series of reusable hose fittings. Reusable construction reduces waste and helps cut assembly times in high-volume or field-service environments. The swivel configuration allows for rotational alignment during installation, reducing stress on connected hose and tubing. Suited to a wide range of industrial hydraulic applications where reliable, repeatable connections are required.

SKU: FC5990-0606S

Supplier Part Number (MPN): FC5990-0606S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
3.19 in L x 0.75 in W x 0.76 in H
End Gender 1
Female
End Size 1
9/16 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH793 Series Hoses
Hose Dash Size
06
Material
Steel
Material Construction
Carbon Steel
Series
FC5990 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18

Product Questions & Answers (1)

Question by: Lynn W on Oct 29, 2025, 6:05 AM
got a -6 hose and need a female JIC swivel end, is this the right one or am I mixin up sizes
Answer by: Customer Support on Oct 30, 2025, 1:11 PM
For a -6 dash hose setup with a female SAE 37 degree JIC swivel, this fitting matches that use. It is an Aeroquip reusable fitting in the FC5990 Series, with a 9/16 inch female JIC thread size called out for the JIC end.
