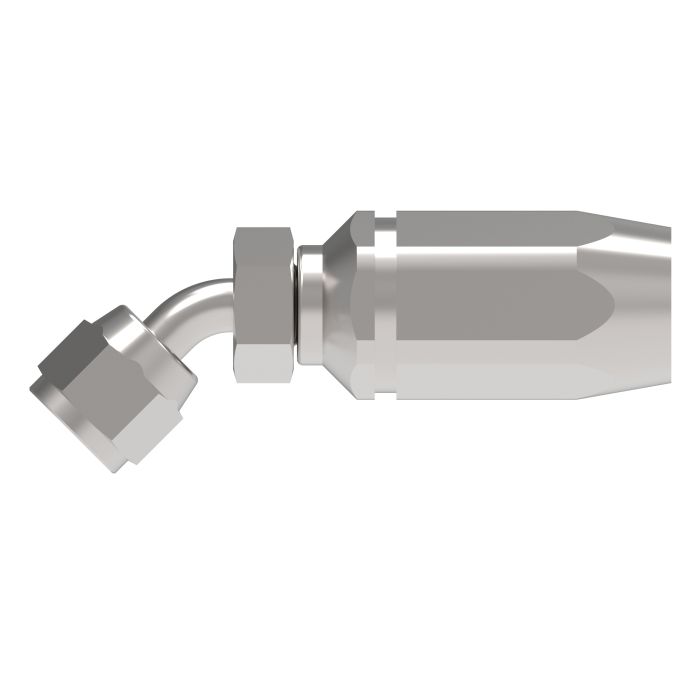

main product photo

Aeroquip Reuse FIT 12 F JIC

Ask A Question

Description & Features

A carbon steel, -12 hose dash size swivel fitting designed for SAE 37° JIC connections, the Aeroquip Reuse Fit 12 F JIC belongs to the Fc5990 Series of reusable hose fittings. The female JIC end pairs with a 45° elbow configuration, making it well suited for routing hydraulic lines in tight or angled installations where a straight fitting would be impractical.

Built for reusability, this fitting assembly is designed to cut assembly times and support efficient production workflows. Carbon steel construction provides dependable durability across a wide range of hydraulic applications. At 1.25 inches wide and 0.8 lb, it is a compact, field-practical component compatible with standard -12 hose assemblies.

SKU: FC5990-1212S

Supplier Part Number (MPN): FC5990-1212S

Specifications

Brand
Aeroquip® by Danfoss
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Construction Style
Reusable
Cut-Off Factor
2.28 in
Dimension Standards
SAE J514
Dimensions
4.77 in L x 1.25 in W x 1.4 in H
End Gender 1
Female
End Size 1
12
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH793 Series Hoses
Hose Dash Size
12
Inside Diameter
0.61 in
Material
Steel
Material Construction
Carbon Steel
Series
FC5990 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12

Product Questions & Answers (1)

Question by: Frank C on Feb 10, 2026, 6:38 PM
Will this fitting work okay with a standard -12 hose?
Answer by: Customer Support on Feb 12, 2026, 12:04 PM
Yes, this Aeroquip fitting is designed for use with -12 hose dash size assemblies.
