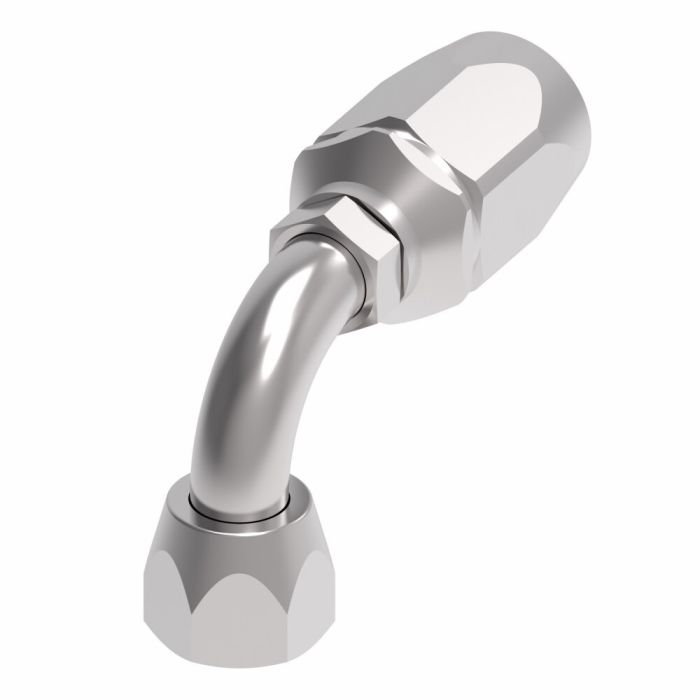

Aeroquip Reuse FIT 12 F JIC

Ask A Question

Description & Features

Designed for versatility and reliability, the Aeroquip Reuse FIT 12 F JIC is a durable fitting assembly constructed from high-quality carbon steel. It features a SAE 37˚ JIC swivel with a 90˚ short elbow configuration, making it suitable for a wide range of industrial applications. This female fitting is engineered to connect seamlessly with hoses, tubes, or lines, ensuring a secure and efficient hydraulic connection.

With a hose dash size of -12, this fitting facilitates quick assembly, reducing installation time and boosting production efficiency. As part of the trusted Aeroquip brand, it delivers dependable performance in demanding environments. Weighing 1.04 lb and measuring 1.25 inches in width, this fitting combines optimal size and weight for practical use in various industrial settings.

SKU: FC5992-1212S

Supplier Part Number (MPN): FC5992-1212S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.11 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Construction Style
Reusable
Cut-Off Factor
2.24 in
Dimension Standards
SAE J514
Drop Dimensions
1.822 in
End Connection Torque
79 to 92 ft-lb
End Gender 1
Female
End Size 1
12
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH793 Series Hoses
Hex Size
1.25 x 0.93 in
Hose Dash Size
12
Inside Diameter
0.58 in
Material
Steel
Material Construction
Carbon Steel
Series
FC5992 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Keith H on Dec 3, 2025, 8:08 PM
Is this carbon steel fitting gonna hold up okay in a hydraulic system pushing some pressure?
Answer by: Customer Support on Dec 5, 2025, 11:46 AM
Constructed from high-quality carbon steel, it's certainly durable enough for demanding industrial applications and should provide a secure hydraulic connection.
