Aeroquip Hose And Coil - Code HC

Description & Features

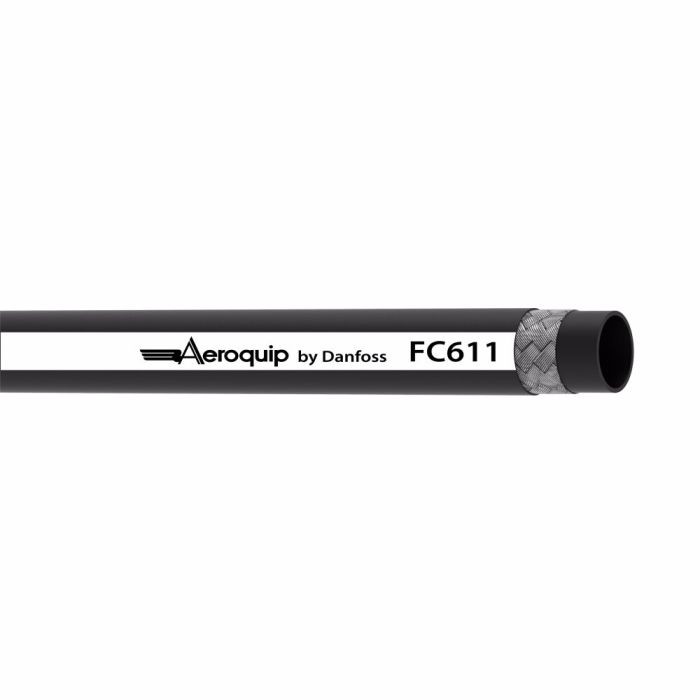

Designed specifically for phosphate ester base fluid applications, the Aeroquip Hose And Coil - Code HC is a rubber hydraulic braided hose built to perform under demanding pressure conditions. The hose features an EPDM tube and cover paired with a single-ply wire braid reinforcement, making it well-suited for systems where fluid compatibility and structural integrity are both critical.

Available in a -24 dash size with a minimum bend radius of 20 inches, this green-jacketed hose carries an ink transfer lay line and is rated for a minimum working temperature of -40°F. The conductive construction supports static dissipation requirements, and the EPDM cover provides standard abrasion resistance for industrial service environments. Qualified fittings for this hose are TTC type, and the hose assembly system is engineered to extend service life under sustained high-pressure use.

SKU: FC611-24

Supplier Part Number (MPN): FC611-24

Alternate Part Numbers: C1FK46

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1FK46, Alternate Part Number MINO-00015X00646	Application For use with phosphate ester base fluids.	Color Green	Conductivity 30	Construction 1 Ply Braid	Cover Material EPDM	Dash Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 20	Minimum Bend Radius 20	Minimum Working Temperature -40	Product Width 2.05	Qualified Hose Fittings TTC	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number FC611-24	Tube Material EPDM	Product Weight 2.93 lbs

Product Questions & Answers (1)

Question by: Tommy M on Nov 16, 2025, 5:00 PM

Will this hose hold up to hot hydraulic fluid on a machine that runs pretty much all day?

Answer by: Customer Support on Nov 18, 2025, 6:44 AM

Designed specifically for phosphate ester base fluid applications, this hose is constructed to endure demanding pressure conditions and sustained use. Its EPDM tube and cover are paired with a single-ply wire braid reinforcement for structural integrity in continuous operation.
