AEROQUIP HOSE

Description & Features

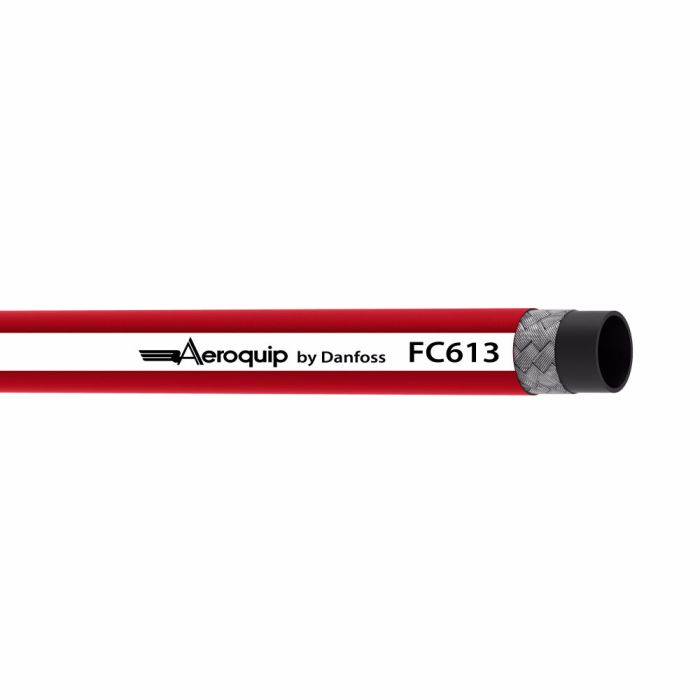

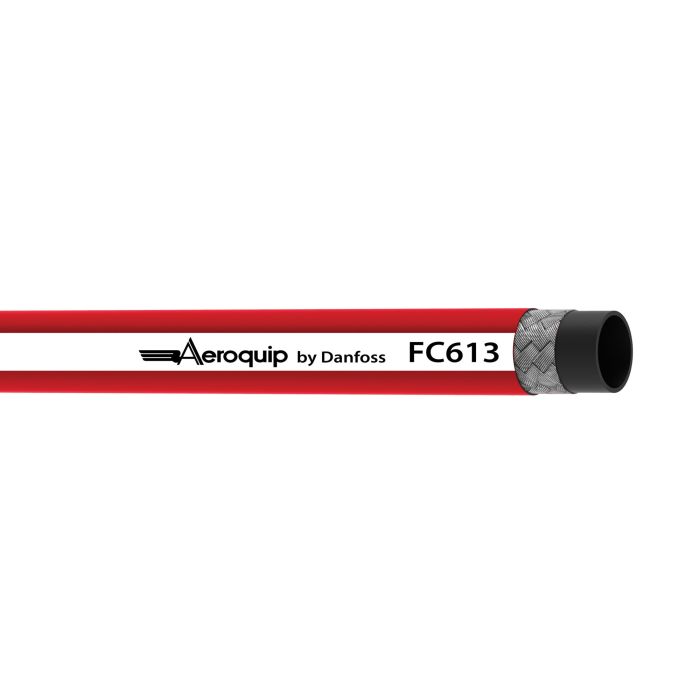

Aeroquip by Danfoss / Eaton FC613 Series Rubber Hydraulic Braided Hose is engineered for maximum durability under harsh operating conditions. Constructed with robust materials this product can withstand the highest pressures. Featuring a 1-ply braid construction and synthetic rubber cover it is suitable for hydraulics gasoline air crude fuel and lubricating oils applications.

MPN: FC613-04RL

Supplier Part Number: FC613-04RL

This red hose is designed with an impulse cycle life of 150 000 cycles ensuring long-lasting performance. It meets SAE 100R1 certification and has standard abrasion resistance. The minimum bend radius is 4 and it can operate in temperatures as low as -40 degrees. Qualified fittings for this hose include 1SA and 1A making it a versatile choice for industrial settings. Conductive in nature the hose also features ink transfer lay line style for easy identification. It has a product width of 0.56 inches ensuring it fits seamlessly within critical systems. Featuring a synthetic rubber tube material and wire reinforcement it promises reliable performance in demanding environments. The hose does not include adjustable ends valves or remote controls and is designed explicitly for heavy-duty use.

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number FC613-04	Application Hydraulics, gasoline, air, crude fuel and lubricating oils.	Certifications SAE 100R1	Color Red	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.56	Qualified Hose Fittings 1SA, 1A	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number FC613-04RL	Tube Material Synthetic Rubber	Product Weight 0.31 lbs

Product Questions & Answers (1)

Question by: Peggy R on Nov 16, 2025, 2:29 PM

got a tight spot on my machine, how sharp can i bend this -4 hose without kinkin it

Answer by: Customer Support on Nov 18, 2025, 1:22 PM

For the FC613-04RL in dash size -4, the minimum bend radius is 4 inches. Staying at or above that bend radius helps prevent kinks and keeps the reinforcement from getting stressed.
