AEROQUIP

Description & Features

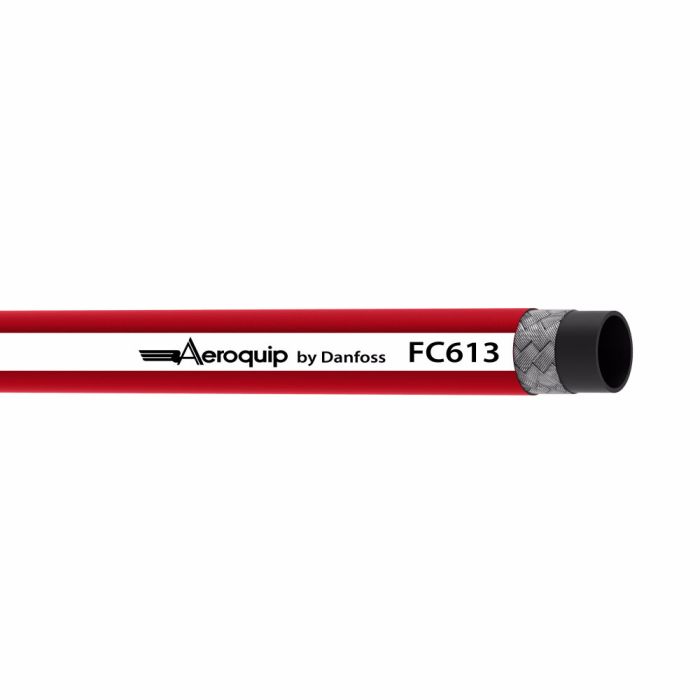

Rated to SAE 100R1 standards, this -6 dash size rubber braided hose is built for hydraulic systems handling gasoline, air, crude fuel, and lubricating oils. The synthetic rubber inner tube and cover are reinforced with a single-ply wire braid, providing reliable pressure resistance across a broad temperature range down to -40°F.

The Aeroquip FC613 Series is designed for durability under demanding conditions, with a conductive construction and ink transfer lay line. A minimum bend radius of 5 inches and a red synthetic rubber cover make it straightforward to route and identify in service. Compatible qualified fittings include 1AA, 1SA, and FC5988 series.

SKU: FC613-06RL

Supplier Part Number (MPN): FC613-06RL

Alternate Part Numbers: FC613-06

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number FC613-06, Alternate Part Number MINO-00015X21794	Application Hydraulics, gasoline, air, crude fuel and lubricating oils.	Certifications SAE 100R1	Color Red	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 5	Minimum Bend Radius 5	Minimum Working Temperature -40	Product Width 0.71	Qualified Hose Fittings 1AA, 1SA, FC5988	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number FC613-06RL	Tube Material Synthetic Rubber	Product Weight 0.37 lbs

Product Questions & Answers (1)

Question by: Rusty A on Dec 12, 2025, 1:01 PM

What kind of fittings go with this hose? Gotta replace one on my tractor.

Answer by: Customer Support on Dec 14, 2025, 9:26 AM

According to the specs, this Aeroquip hose works with 1AA, 1SA, and FC5988 series fittings.
