AEROQUIP HOSE

Description & Features

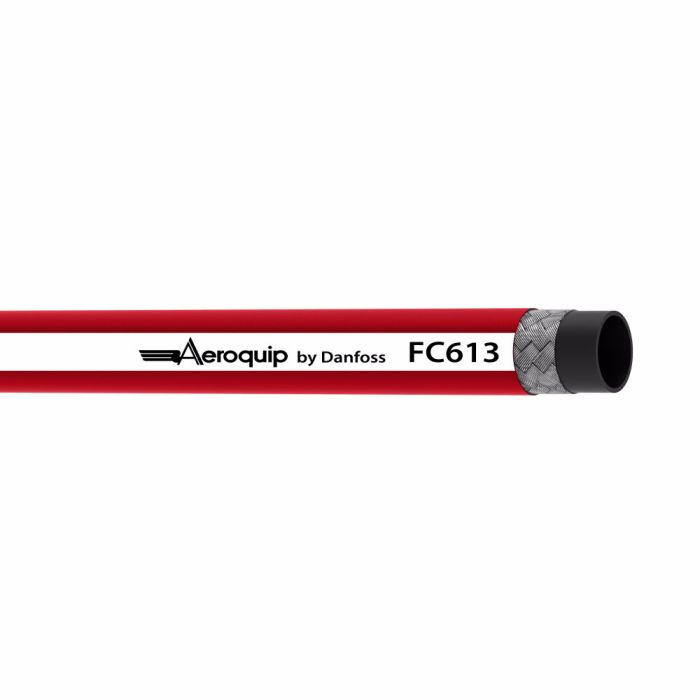

The Aeroquip by Danfoss / Eaton FC613 Series Rubber Hydraulic Braided Hose is designed for maximum durability under harsh operating conditions. This robust construction is able to withstand the highest pressures making it ideal for hydraulic systems gasoline air crude fuel and lubricating oils applications.

Featuring a 1-ply wire braid reinforcement this hose is both conductive and color-coded in red with a synthetic rubber cover. It meets SAE 100R1 certification standards. The hose is engineered to extend the life of hose assemblies and features a standard level of abrasion resistance.

Qualified hose fittings for this product include 1AA 1SA and FC5988. This hose has a minimum bend radius of 9.5 and can operate in temperatures as low as -40 degrees.

MPN: EAR99

Supplier Part Number: FC613-12RL

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number FC613-12, Alternate Part Number MINO-00925X00676	Application Hydraulics, gasoline, air, crude fuel and lubricating oils.	Certifications SAE 100R1	Color Red	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 9.50	Minimum Bend Radius 9.5	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.13	Qualified Hose Fittings 1AA, 1SA, FC5988	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number FC613-12RL	Tube Material Synthetic Rubber	Product Weight 0.65 lbs

Product Questions & Answers (3)

Question by: Curt R on Jul 31, 2025, 6:59 AM

what's the lowest temp this hose can handle? got equipment running in some pretty cold conditions and need to know if it'll hold up

Answer by: Customer Support on Aug 2, 2025, 6:09 AM

Rated down to -40 degrees, so cold weather operation generally isn't a concern with this one. The synthetic rubber tube and cover hold up well at that lower end, and the wire braid reinforcement keeps things stable under pressure even when temperatures drop hard.

Question by: Ricky C on Feb 9, 2026, 9:19 PM

Will this hose hold up to gasoline and oil alright?

Answer by: Customer Support on Feb 11, 2026, 6:06 AM

Absolutely, this Aeroquip hose is designed for use with gasoline, air, crude fuel, and lubricating oils.

Question by: Wes W on Mar 20, 2026, 6:26 PM

got a -12 hose to replace, is this FC613-12RL the same thing as FC613-12 or am i gonna end up with the wrong one

Answer by: Customer Support on Mar 22, 2026, 9:09 AM

For dash size and series, it matches. The SKU is FC613-12RL and the alternate part number shown is FC613-12, so you are in the right family for a -12 FC613 hose.
