Aeroquip Hose R1 MM RED

Description & Features

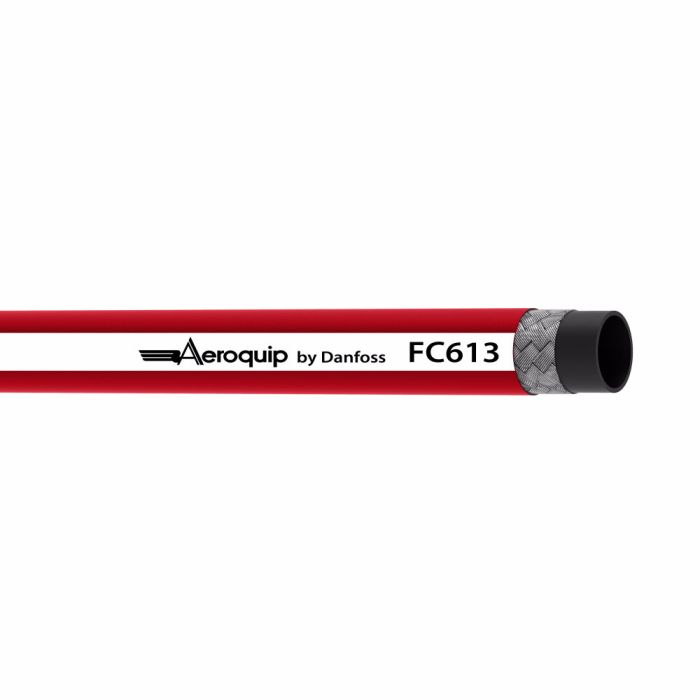

Aeroquip Hose R1 MM RED is a synthetic rubber covered, 1-ply braided wire reinforced hose suitable for use in hydraulic, gasoline, air, crude fuel, and lubricating oil applications.

The red Aeroquip hose features robust construction for durability under harsh conditions and is system engineered to extend hose assembly life. It is SAE 100R1 certified and operates in temperatures as low as -40 degrees.

Qualified fittings include 1AA, 1SA, and FC5988.

SKU: FC613-16RL

Supplier Part Number (MPN): FC613-16RL

Specifications

Abrasion Resistance 29	Application Hydraulics, gasoline, air, crude fuel and lubricating oils.	Certifications SAE 100R1	Color Red	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 12	Minimum Bend Radius 12	Minimum Working Temperature -40	Product Width 1.44	Qualified Hose Fittings 1AA, 1SA, FC5988	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number FC613-16RL	Tube Material Synthetic Rubber	Product Weight 0.91 lbs

Product Questions & Answers (1)

Question by: Melvin R on Feb 28, 2026, 6:43 AM

What kind of stuff can I run through this hose? I'm using it for a project on my farm.

Answer by: Customer Support on Mar 2, 2026, 6:54 AM

This Aeroquip hose is suitable for hydraulics, gasoline, air, crude fuel, and lubricating oils.
