Aeroquip Crimp FittingS - Code

Description & Features

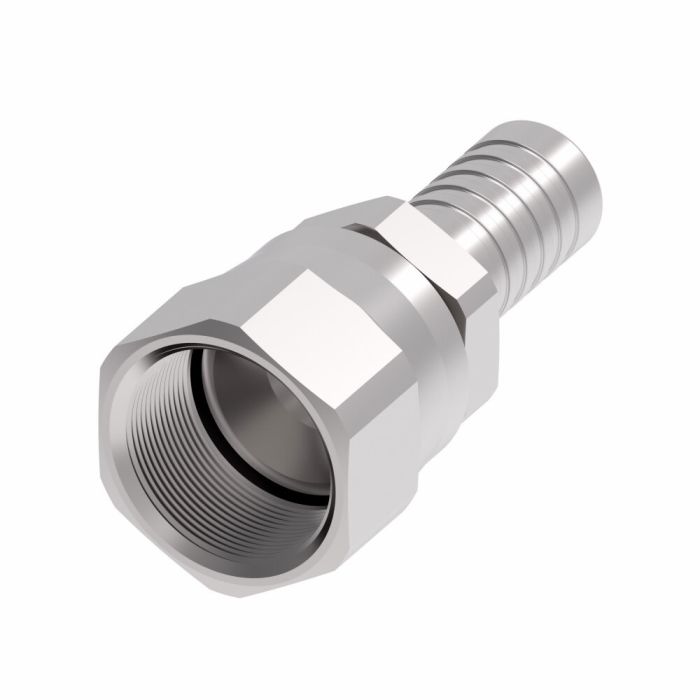

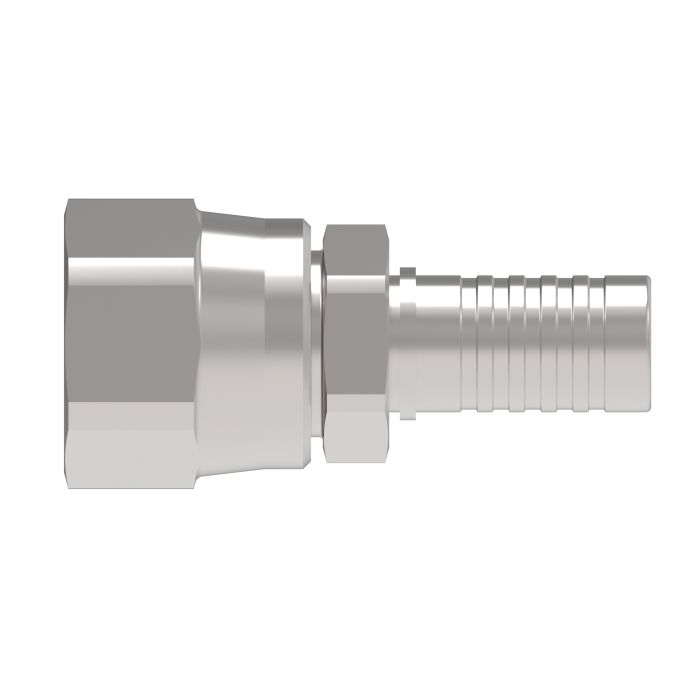

This carbon steel nipple assembly connects a female SAE 45 flare end to a male hose/tube end, making it a practical transition fitting for hydraulic hose assemblies. With a hose dash size of -5 and a 0.5-inch end size on the SAE 45 side, it is sized for common medium-pressure hydraulic line configurations. The 0.5-inch hex on the male end allows for standard wrench engagement during installation.

The Aeroquip Crimp Fittings - Code series is manufactured from carbon steel, offering reliable strength for hydraulic service environments. The crimp-style construction is compatible with Aeroquip hose assembly tooling and is suited for use in fluid power circuits where a secure, leak-resistant connection between rigid and flexible lines is required. A fluid compatibility reference document is available from the manufacturer for guidance on media suitability.

SKU: FC6216-0505S

Supplier Part Number (MPN): FC6216-0505S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1-1/2 in	Compatible Hose ID 0.26 in	Connection Size 1 5/16 in	Connection Size 2 5/16 in	Connection Type Female SAE Flared Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 45 deg Swivel	Construction Style Crimp	Cut-Off Factor 1.01 in	Dimensions 1-1/2 in L	End Gender 1 Female	End Gender 2 Male	End Size 1 1/2 in	Finish Zinc-Plated	Fitting Type Nipple	For Use With 2807, FC465 and S-TW Series PTFE Hoses	Hex Size 0.62 x 0.5 in	Hose Dash Size 05	Inside Diameter 3/16 in	Material Steel	Material Construction Carbon Steel	Series FC6216 Series	Thread Sealant Without Thread Sealant	Thread Size 1/2-20	Thread Type UNF

Product Questions & Answers (1)

Question by: Bonnie S on Oct 1, 2025, 7:40 AM

Will this fitting work with a standard SAE flare?

Answer by: Customer Support on Oct 2, 2025, 10:45 AM

It is indeed designed for use with a female SAE 45 flare end, making it compatible with standard SAE flare connections in hydraulic systems.
