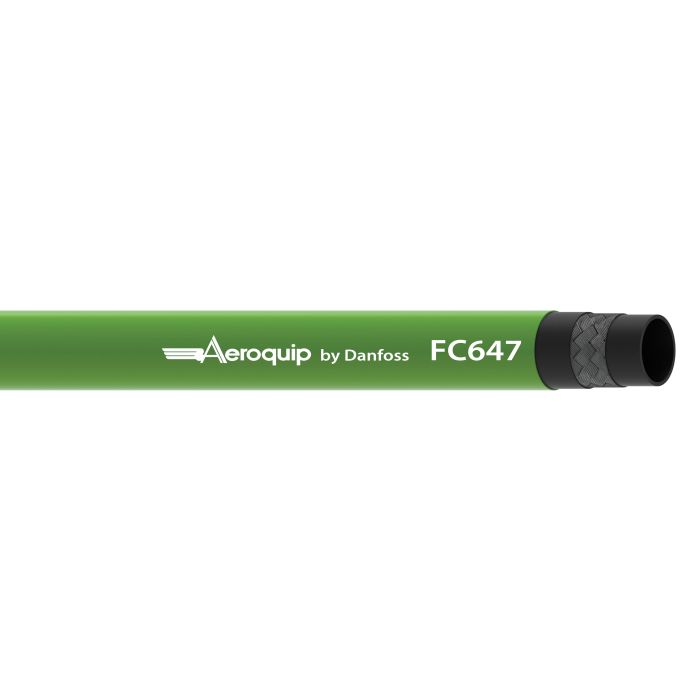

AEROQUIP HOSE ON REEL / MIN REEL 380FT -

Description & Features

Designed for use with gasoline, fuel, lubricating oils, air, and water, the Aeroquip FC647-06GRN-RL Hose on Reel delivers reliable low-pressure fluid transfer in a convenient 380-foot reel format. The -6 dash size hose features a nitrile tube, polyester braid reinforcement, and a polyester cover rated green, offering a durable, kink-resistant build suited to demanding service conditions.

Construction is socketless with a single-ply braid and a conductive rating, making it compatible with reusable fittings. A minimum bend radius of 3 inches and a minimum working temperature of -40°F support use across a broad range of environments. This hose is not recommended for hydraulic impulse applications and is not approved for air brake use.

SKU: FC647-06GRN-RL

Supplier Part Number (MPN): FC647-06GRN-RL

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X10886	Application For gasoline, fuel and lubricating oils, air and water. Not recommended for hydraulic impulse applications and not approved for air brake applications.	Color Green	Conductivity 30	Construction 1 Ply Braid	Cover Material Polyester	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Longer hsoe assembly life\|Withstands high pressure and temperatures\|Kink resistant	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Wheel	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -40	Product Width 0.66	Qualified Hose Fittings Reusable	Reinforcement Material Polyester	Sub Brand Aeroquip	Supplier Part Number FC647-06GRN-RL	Tube Material Nitrile	Product Weight 0.41 lbs

Product Questions & Answers (1)

Question by: Kirk R on Sep 23, 2025, 8:31 AM

So, this is low pressure hose, right? I just wanna make sure it won't burst on me if I push it a little.

Answer by: Customer Support on Sep 25, 2025, 6:38 AM

It's designed for low-pressure applications involving gasoline, fuel, lubricating oils, air, and water. Keep in mind that it's not recommended for hydraulic impulse applications or air brake systems.
