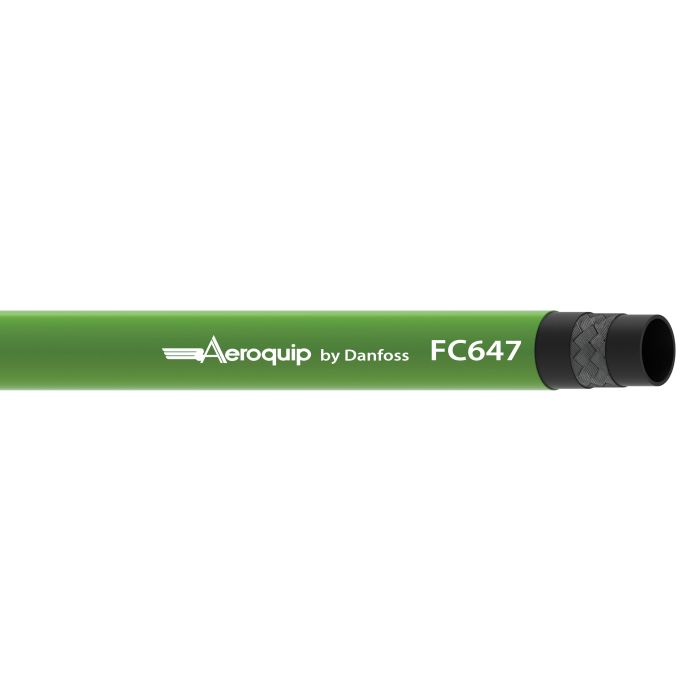

Designed for low-pressure fluid transfer in demanding industrial environments, the Aeroquip FC647-06GRN is a -6 dash size socketless hose built around a nitrile tube and reinforced with a single-ply polyester braid. The polyester cover provides reliable protection, while the conductive construction helps manage static buildup in applicable service conditions.
Rated for service from -40°F and capable of handling gasoline, fuel and lubricating oil, air, and water, this hose suits a broad range of fluid compatibility requirements. A minimum bend radius of 3 inches and kink-resistant construction allow flexible routing in tight installations. The socketless design simplifies assembly, and the ink transfer lay line supports accurate cut-length identification. The HOSE, SOCKETLESS/R6NITRILE PL is intended for use with compatible socketless fittings in low-pressure hydraulic and fluid power assemblies.
SKU: FC647-06GRN
Supplier Part Number (MPN): FC647-06GRN
|
Alternate Part Numbers
MINO-00015X10885
|
Application
Gasoline,fule and lubricating oil,air and water
|
Color
Black
|
Conductivity
30
|
Construction
1 Ply Braid
|
Cover Material
Polyester
|
Dash Size
-6
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
12.00
|
UOM
FT
|
Features
Longer hsoe assembly life|Withstands high pressure and temperatures|Kink resistant
|
ICC
Hoses and Flexible Tubes
|
Language
English
|
Lay Line Style
Ink Transfer
|
Minimum Bend Radius
3
|
Minimum Bend Radius
3
|
Minimum Working Temperature
-40
|
Product Width
0.38
|
Reinforcement Material
Polyester
|
Sub Brand
Aeroquip
|
Supplier Part Number
FC647-06GRN
|
Tube Material
Nitrile
|
Product Weight
0.41 lbs
|
