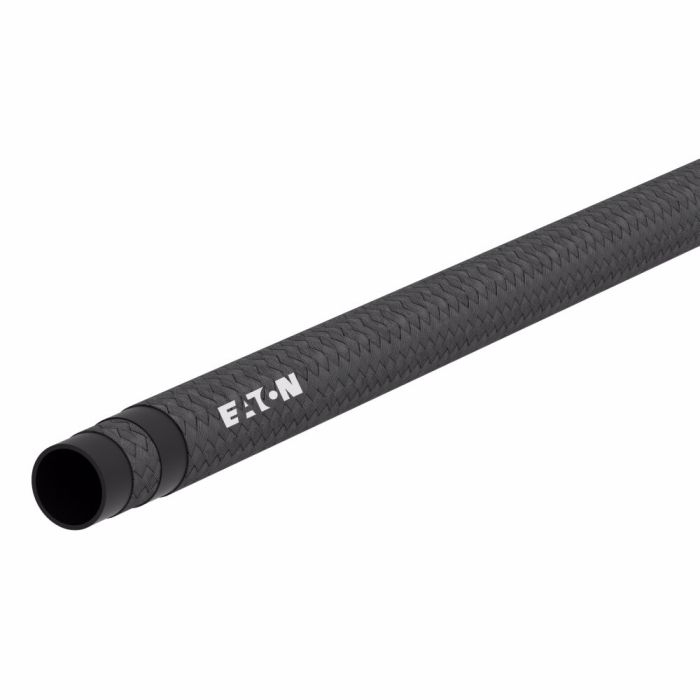

main product photo

Hose

Ask A Question

Description & Features

Engineered for demanding hydraulic applications, this Eaton Aeroquip Hose is built around a chlorinated polyethylene tube and reinforced with a single-ply aramid braid. The polyester cover delivers premium abrasion resistance, making it well-suited for environments where hose routing exposes lines to contact with machine surfaces or hardware.

Rated for a minimum working temperature of -40°F and carrying a dash size of -4, this hose maintains reliable performance across a range of mobile and industrial hydraulic circuits. A minimum bend radius of 1.25 inches supports compact routing in tight installations, while the conductive construction addresses static dissipation requirements. Compatible fittings are limited to Crimp OTC types.

SKU: FC699-04

Supplier Part Number (MPN): FC699-04

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number MINO-00015X10915
Color
Black
Conductivity
30
Construction
1 Ply Braid
Cover Material
Polyester
Dash Size
-4
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Wheel
Minimum Bend Radius
1.25
Minimum Bend Radius
1.25
Minimum Working Temperature
-40
Product Width
0.49
Qualified Hose Fittings
Crimp OTC
Reinforcement Material
Aramid
Supplier Part Number
FC699-04
Tube Material
Chlorinated Polyethylene
Product Weight
0.29 lbs

Related Documents

Product Questions & Answers (2)

Question by: Marvin A on Apr 9, 2025, 11:06 AM
Does this hose handle cold starts okay? Running equipment that sits outside overnight and temps drop real low sometimes.
Answer by: Customer Support on Apr 10, 2025, 1:35 PM
Cold mornings won't give this hose much trouble. It's rated down to -40°F, so even hard winters shouldn't cause cracking or stiffness issues at startup. The chlorinated polyethylene tube holds up well at low temps, and the aramid braid reinforcement keeps things stable once pressure builds.
Question by: Dean A on Sep 3, 2025, 7:53 PM
trying to snake this hose through a tight spot, how tight can i bend it without kinking it
Answer by: Customer Support on Sep 4, 2025, 9:41 PM
For tight routing, the minimum bend radius on this hose is 1.25 inches. Keeping your bend at or above that radius helps it hold its shape and avoid damage in compact installs.
