Hose

Ask A Question

Description & Features

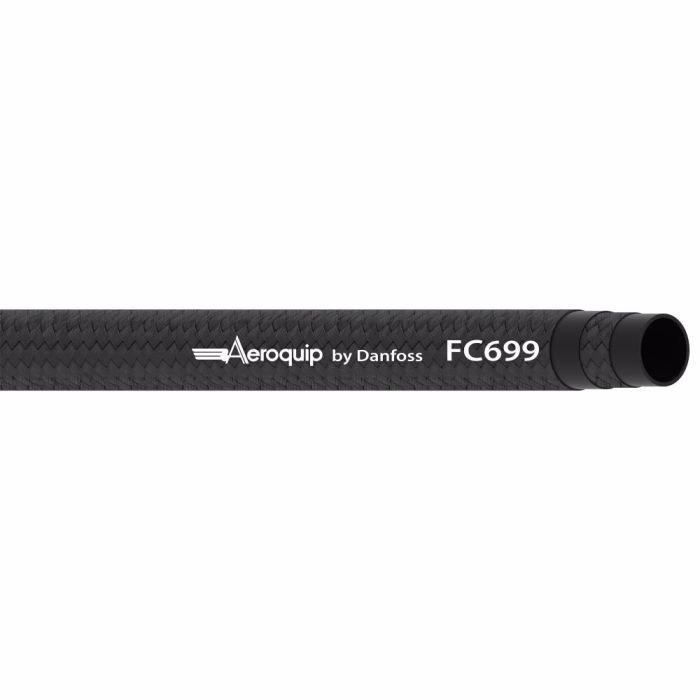

This Eaton Aeroquip FC699 Series hose excels in applications involving gasoline, fuel, lubricating oils, and air transmission oil coolers. Its aramid reinforcement and AQP inner tube ensure reliability and performance in demanding environments.

Featuring a conductive, black polyester cover that offers standard abrasion resistance, this -8 dash size hose is designed for durability. It has been tested to meet an impulse cycle life of 2000000 cycles. It maintains a minimum bend radius of 2 inches, providing flexibility where needed.

SKU: FC699-08

Supplier Part Number (MPN): FC699-08

Specifications

Brand
Aeroquip® by Danfoss
Abrasion Resistance
Premium
Color
Black
Conditional Temp Range
Air Not to Exceed 121 deg C
Construction
2-Textile Braided
Cover Material
Polyester
Dash Size
08
Hose Type
Conductive, High-Temperature
Impulse Cycle
500000
Impulse Cycle Life
2000000
Inside Diameter
1/2 in
Lay Line Style
Ink Wheel
Nominal Size
#08
Package Form
Bulk
Qualified Hose Fittings
OTC
Reinforcement
1-Ply Braided Aramid
Reinforcement Material
Aramid
Resistance
Abrasion
Series
FC699 Series
Tube Material
Chlorinated Polyethylene

Product Questions & Answers (2)

Question by: Eddie K on Feb 28, 2026, 5:14 PM
got a tight bend to make in the engine bay. how tight can this FC699-08 hose bend without kinking up?
Answer by: Customer Support on Mar 1, 2026, 6:11 PM
Minimum bend radius on the FC699-08 is 2 inches, so you want your routing to stay at or above that bend to keep it from being stressed.
Question by: Tammy F on May 5, 2025, 8:47 PM
Running this on a fuel system with a mix of gasoline and oil lines, does the FC699-08 hold up to both, or is it better suited for one over the other?
Answer by: Customer Support on May 7, 2025, 6:26 PM
Built around an AQP inner tube with aramid reinforcement, this hose handles gasoline, fuel, and lubricating oils without having to pick favorites. The FC699 series was put together specifically for applications where those fluid types overlap, so running it across both in the same system is exactly what it's meant for. The 1-ply braid construction keeps things compact, and the conductive black polyester cover adds durability without bulking up the assembly.
