Description & Features

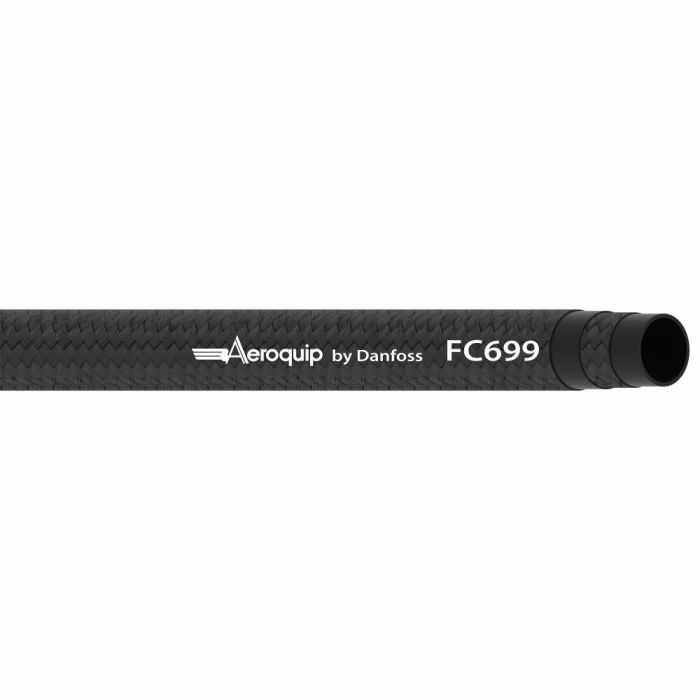

Designed for use with gasoline, fuel, and lubricating oils, the Eaton Aeroquip FC699 Series Hose is a versatile solution for air transmission and oil cooler applications. Its robust construction features a 1-ply aramid braid and a polyester cover, providing excellent abrasion resistance and conductivity. The hose is engineered to withstand high temperatures, ensuring reliable performance across various demanding environments.

The FC699 Series Hose is characterized by its small bend radius of 4 inches, facilitating installation in tight spaces. The AQP inner tube enhances its durability, while the qualified Crimp OTC hose fittings offer secure and efficient connections. Available in a dash size -12 with a product width of 1.08 inches, this hose meets the rigorous demands of industrial applications.

SKU: FC699-12

Supplier Part Number (MPN): FC699-12

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015X10923	Application For gasoline, fuel and lubricating oils, air transmission oil cooler application.	Color Black	Conductivity 30	Construction 1 Ply Braid	Cover Material Polyester	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Impulse Cycle Life 2000000 cycle	Language English	Lay Line Style Ink Wheel	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -40	Product Width 1.08	Qualified Hose Fittings Crimp OTC	Reinforcement Material Aramid	Sub Brand Aeroquip	Supplier Part Number FC699-12	Tube Material AQP Inner tube	Product Weight 0.57 lbs

Product Questions & Answers (2)

Question by: Melvin O on May 25, 2025, 1:50 PM

trying to snake a fuel line through a tight spot, how tight will this FC699-12 hose bend without kinking?

Answer by: Customer Support on May 27, 2025, 10:29 AM

For routing in cramped areas, the FC699-12 is built with a 4 inch minimum bend radius, which helps it make tighter turns than a lot of general hose without fighting you during install.

Question by: Jimmy T on Jul 18, 2025, 8:09 AM

Got a tight spot under the hood where I need to route fuel line, how small a bend can this hose actually make before it kinks up on me?

Answer by: Customer Support on Jul 19, 2025, 10:39 AM

Four inches is the minimum bend radius on this one. That's pretty workable for cramped engine bays and tight routing situations. Just don't push it tighter than that or you risk restricting flow and stressing the hose wall over time.
