Ftng (perm), teflon

Description & Features

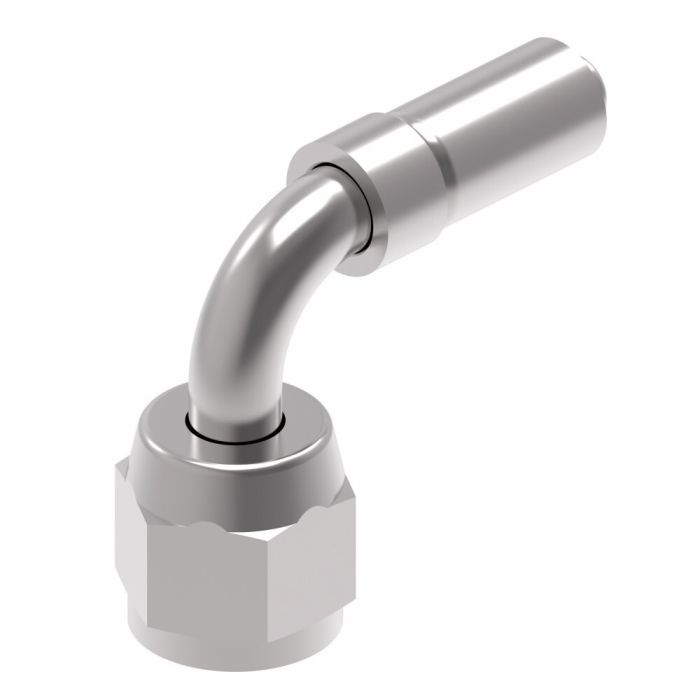

Part of the Eaton Aeroquip FC7217 Series, this carbon steel crimp hose fitting is designed for permanent hose assembly applications with a Teflon-compatible construction. The fitting features a female SAE end connection on one side and a hose/line end on the other, sized for -6 dash hose with a 0.625-inch end diameter, making it a reliable choice for hydraulic fluid transfer lines requiring a secure, leak-resistant crimp termination.

Dura-Kote plating provides strong corrosion resistance suited to demanding industrial environments. The system-engineered design supports extended hose assembly service life and is built to maintain consistent performance under sustained operating conditions. With a product width of 0.75 inches and a drop dimension of 0.85 inches, the Ftng (perm), teflon fits within compact installation envelopes where space is a consideration.

SKU: FC7217-0606S

Supplier Part Number (MPN): FC7217-0606S

Specifications

Brand Aeroquip® by Danfoss	Compatible Hose ID 3/8 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 0.82 in	Dimensions 1.31 in L	Drop Dimensions 0.85 in	End Gender 1 Female	End Size 1 5/8 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 2807 and FC465 Series Hoses	Hex Size 3/4 in	Hose Dash Size 06	Inside Diameter 1/4 in	Material Steel	Material Construction Carbon Steel	Series FC7217 Series	Thread Sealant Without Thread Sealant	Thread Size 5/8-18

Product Questions & Answers (1)

Question by: Roy C on Oct 24, 2025, 8:09 AM

Got a -6 hose I need to terminate with a female SAE end -- will this fitting work for that setup?

Answer by: Customer Support on Oct 25, 2025, 10:31 AM

For a -6 dash hose needing a female SAE connection on one end and a crimp termination on the hose end, this is exactly the configuration the FC7217-0606S is built for. The 0.625-inch end diameter lines up with standard -6 sizing, and the crimp design locks the assembly together permanently once installed. Worth noting that permanent crimp fittings are not meant to be disassembled and reused, so plan accordingly before you commit the hose to a crimp.
