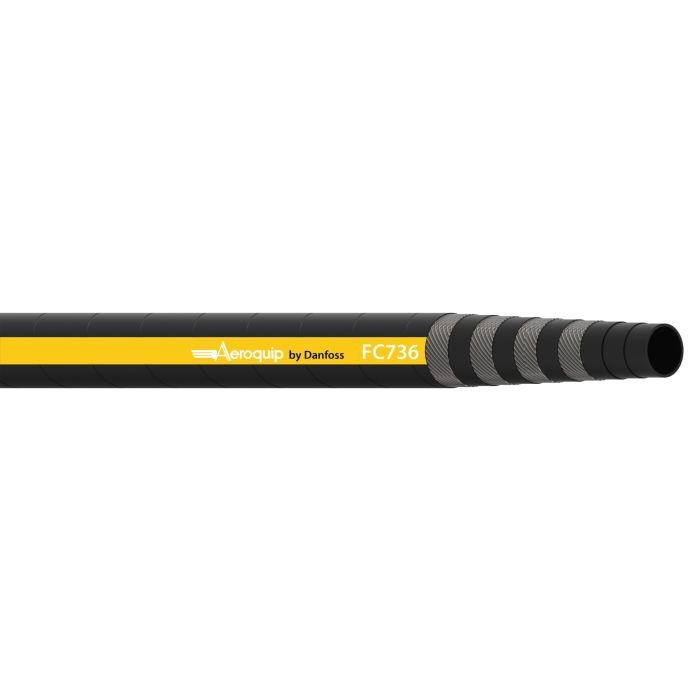

Designed for high-abrasion industrial and hydraulic system applications, the Eaton Aeroquip FC736 Series Rubber Hydraulic Spiral Hose is engineered for excellence. With certifications such as SAE 100R12 and EN856 Type R12, it ensures compliance and reliability in demanding environments like construction and forestry. Featuring a robust 4-spiral wire construction, this hose withstands pressures up to 4000 PSI, making it ideal for critical applications.
The Bruiser cover material enhances durability under harsh conditions, while the synthetic rubber tube material ensures compatibility with petroleum and water-based fluids. Its conductive properties and minimum bend radius of 11.81 inches enhance operational efficiency and safety. The hose is MSHA approved and DNV and ABS certified, further attesting to its quality and performance.
SKU: FC736-16
Supplier Part Number (MPN): FC736-16
Alternate Part Numbers: C1HE72
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1HE72, Alternate Part Number MINO-00015X89999
Application
High abrasion industrial and hydraulic system applications with petroleum and water-based fluids Recommended for use on critical applications in construction, forestry, and other off-highway vehicles
Certifications
SAE 100R12|EN856 Type R12|EN856 4SP
Color
Black
Compliances
MSHA Approved|DNV|ABS Certified|MSHA IC-84/71
Conductivity
30
Construction
4 Spiral
Cover Material
Bruiser
Dash Size
-16
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
500000 cycle
Language
English
Lay Line Style
Ink Transfer
Minimum Bend Radius
11.81
Minimum Bend Radius
11.81
Minimum Working Temperature
-40
Product Width
1.52
Qualified Hose Fittings
4S, 1A-12, Spiral Single Skive, 100R5 Reusable
Reinforcement Material
Wire
Sub Brand
Aeroquip
Supplier Part Number
FC736-16
Tube Material
Synthetic Rubber
Product Weight
2.13 lbs
Product Questions & Answers (2)
Question by: Lynn H on Dec 12, 2025, 4:55 PM
Running this on a forestry machine that sees a whole lot of abuse. Four-spiral construction hold up to that kind of environment, or is that more of a marketing thing?
Answer by: Customer Support on Dec 14, 2025, 6:03 AM
Four-spiral wire reinforcement is genuinely built for that kind of punishment. The FC736 carries a 4000 PSI working pressure rating and has been tested to 500,000 impulse cycles, which puts it well above what most standard two-braid hoses can handle. The Bruiser cover adds a layer of abrasion resistance on top of that, so contact with equipment framing, bark, debris, whatever gets thrown at it is less likely to chew through the outer jacket and compromise the hose underneath. For forestry and off-highway work specifically, this is one of the configurations the hose is rated and listed for.
Question by: Curt G on Aug 21, 2025, 11:07 AM
Running a forestry machine hard in some pretty rough conditions. Will this hose hold up to the abrasion, or am I gonna be replacing it every season?
Answer by: Customer Support on Aug 23, 2025, 6:47 AM
Forestry is exactly what this hose was built for. The Bruiser cover material is specifically rated for high abrasion environments, and the four-spiral wire reinforcement holds up under serious pressure. At 4000 PSI working pressure with a 500,000 cycle impulse life, it's meant to last in the kind of punishing conditions that eat through lesser hose fast. Construction and off-highway equipment applications are called out directly as intended uses, so you're not pushing it outside its design.
