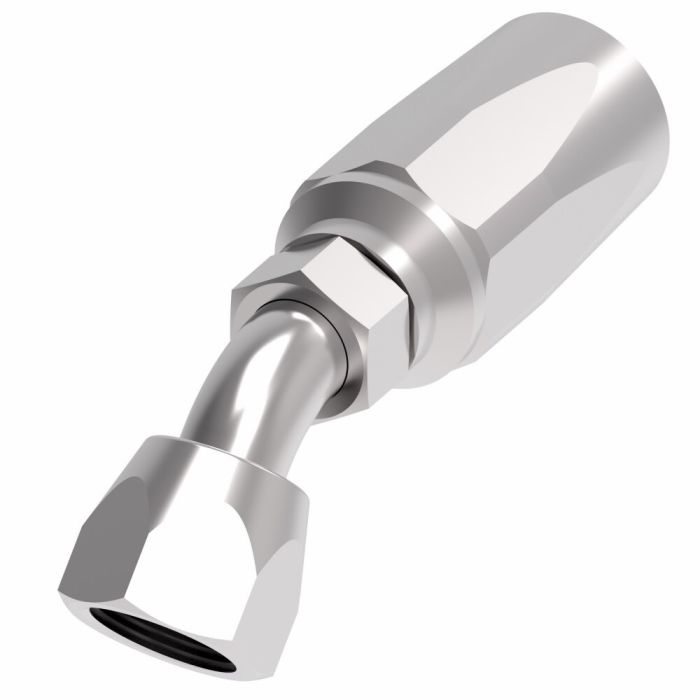

Aeroquip Reusable 45 ELB JIC

Ask A Question

Description & Features

Designed for reliability and versatility, the Aeroquip Reusable 45 ELB JIC fitting is expertly engineered for demanding hydraulic applications. This durable fitting features a 45˚ elbow with an SAE 37˚ JIC swivel connection, crafted from robust carbon steel to ensure longevity and performance under pressure. The female-to-female connection design facilitates seamless integration into various hose, line, or tube systems.

This fitting is well-suited for a wide range of industrial uses, thanks to its ability to reduce assembly times and boost production efficiency. With a drop dimension of 1.0700 and a hex size of 1.5, it accommodates a hose dash size of -16, making it a versatile choice for different configurations. Trust in the Aeroquip brand to deliver dependable and high-quality hydraulic solutions that meet industry standards.

SKU: FC7990-1616S

Supplier Part Number (MPN): FC7990-1616S

Specifications

a Dimensions
4.09 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Female JIC Swivel
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
2-3/4 in
Dimension Standards
SAE J514
Dimensions
0.82 in ID
Drop Dimensions
1 in
End Connection Torque
15 to 16 lb-ft
End Gender 1
Female
End Gender 2
Female
End Size 1
16
End Size 2
16
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH663 Series Hoses
Hex Size
1.5 x 1.69 in
Hose Dash Size
16
Inside Diameter
0.82 in
Material
Steel
Material Construction
Carbon Steel
Series
FC7990 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Warren T on Oct 29, 2025, 7:33 AM
If I'm connecting a hose to a tube, is this the right kinda fitting for that?
Answer by: Customer Support on Oct 31, 2025, 6:28 AM
Yes, this Aeroquip fitting is designed for connecting hoses, lines, and tubes, using a female-to-female SAE 37˚ JIC swivel connection.
