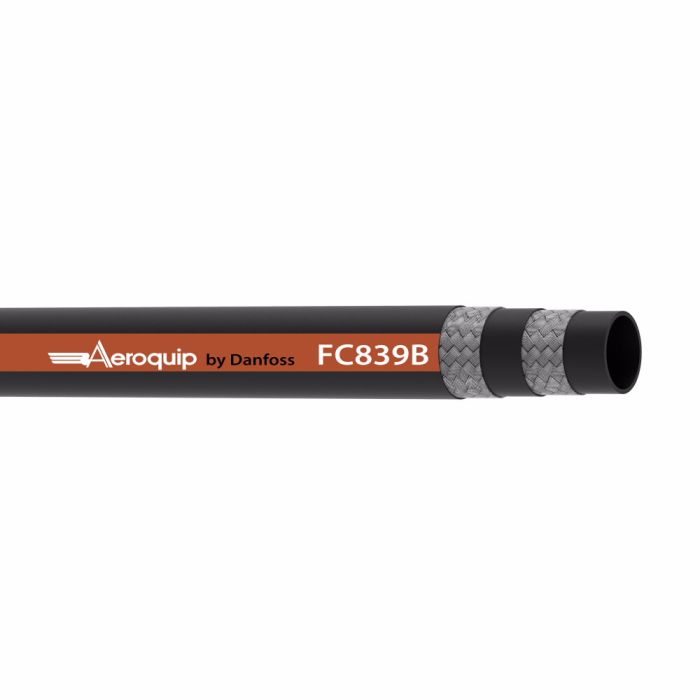

Aeroquip hose designed for use with refined petroleum-based fluids. Featuring a 1-ply steel braid construction and a synthetic rubber tube, this AEROQUIP HOSE offers robust performance under harsh conditions.
The hose is constructed with a Bruiser cover material and is MSHA approved and ABS certified. Meeting SAE 100R17 standards, it has a minimum bend radius of 3.54 inches and withstands temperatures as low as -40 degrees. It is engineered to extend hose assembly life with an impulse cycle life of 200,000 cycles.
SKU: FC839B-08
Supplier Part Number (MPN): FC839B-08
|
Alternate Part Numbers
MINO-00015X11012
|
Application
Refined petroleum based fluids
|
Certifications
SAE 100R17
|
Color
Black
|
Compliances
ABS Certified|DNV|MSHA Approved|MSHA IC-84/71
|
Conductivity
30
|
Construction
1 Ply Braid
|
Cover Material
Bruiser
|
Dash Size
-8
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
12.00
|
UOM
FT
|
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
|
ICC
Hoses and Flexible Tubes
|
Impulse Cycle Life
200000 cycle
|
Language
English
|
Lay Line Style
Ink Transfer
|
Minimum Bend Radius
3.54
|
Minimum Bend Radius
3.54
|
Minimum Working Temperature
-40
|
Product Width
0.85
|
Qualified Hose Fittings
1A
|
Reinforcement Material
Steel
|
Sub Brand
Aeroquip
|
Supplier Part Number
FC839B-08
|
Tube Material
Synthetic Rubber
|
Product Weight
0.42 lbs
|
