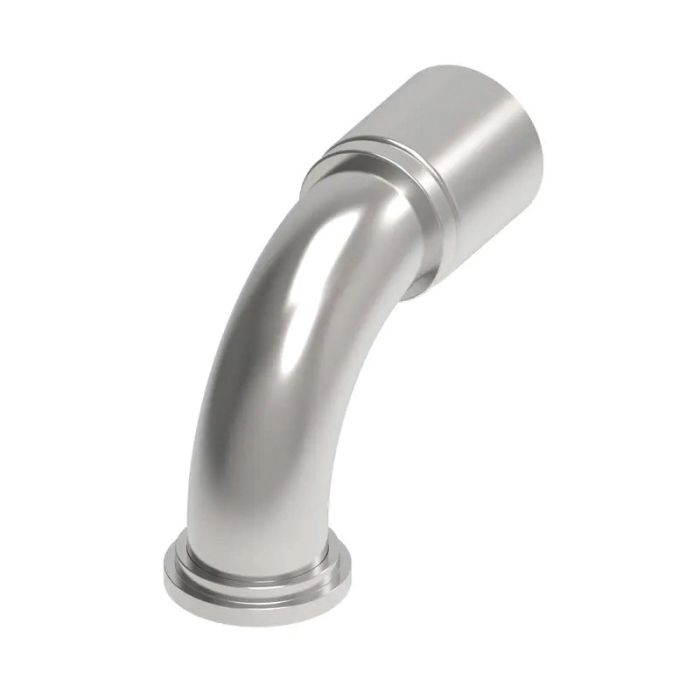

AEROQUIP CRIMP FITTINGS - CODE

Ask A Question

Description & Features

Eaton Aeroquip crimp fittings are designed for a secure and reliable connection in hydraulic systems. The AEROQUIP CRIMP FITTINGS - CODE features a female flanged end for connecting to compatible ports and a line/hose/tube end for versatile system integration.

These fittings ensure optimal fluid compatibility, contributing to the overall efficiency and longevity of your hydraulic setup. Constructed with precision, these fittings offer reliable performance in demanding industrial applications.

SKU: FC9152-4040S

Supplier Part Number (MPN): FC9152-4040S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
2-1/2 in
Connection Size 2
2-1/2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Flange
Cut-Off Factor
1.77 in
Dimension Standards
SAE J518
Dimensions
7.58 in L x 3.31 in W x 5.19 in H
End Gender 1
Female
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
2661 and FC619 Series Hoses
Hose Dash Size
40
Material
Steel
Material Construction
Carbon Steel
Series
FC9152 Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (3)

Question by: Duane R on Dec 21, 2025, 6:17 PM
What kind of fluids can I run through this fitting? Gotta make sure it won't eat through the thing.
Answer by: Customer Support on Dec 23, 2025, 11:58 AM
DocumentLink_Fluid_Compatibility_1 provides a detailed list of compatible fluids to ensure the fitting's longevity and prevent damage. It's always best to double-check before running anything new through your system.
Question by: Neal W on Aug 6, 2025, 10:22 AM
what's the end configuration on this fitting, is one side a flange and the other for a hose or line?
Answer by: Customer Support on Aug 7, 2025, 12:29 PM
Correct on both counts. One end is a female flanged connection for attaching to a compatible flanged port, and the other end is a line, hose, or tube end for routing into your hydraulic system. That combo makes it pretty flexible for a range of hydraulic connections configurations where you're transitioning between a flange port and a hose assembly.
Question by: Chad P on Oct 5, 2025, 1:34 PM
got a crimp hose setup already, what ends does this FC9152-4040S fitting have?
Answer by: Customer Support on Oct 7, 2025, 8:04 AM
On the port side it has a female flanged end, and the other side is a line, hose, or tube end meant for tying into your hydraulic hydraulic connections.
