AEROQUIP

Description & Features

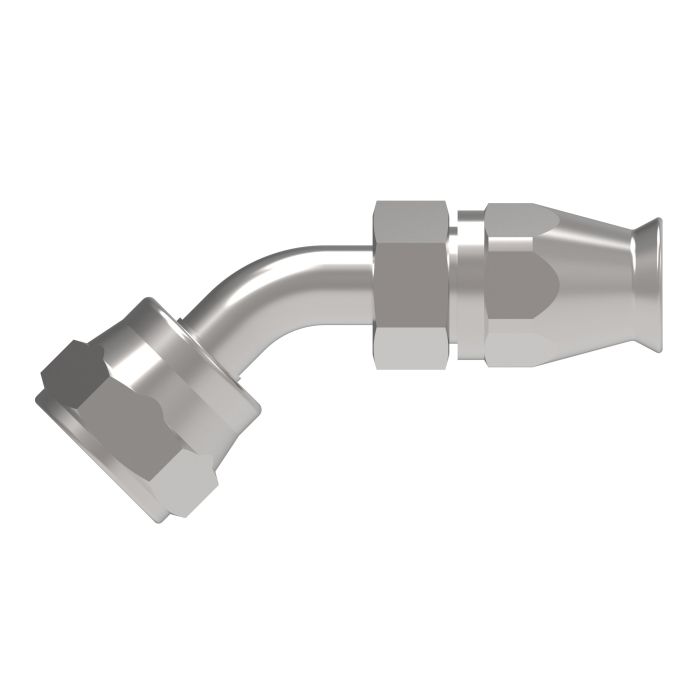

This AEROQUIP fitting assembly is a durable and dependable component suitable for a wide range of applications. Constructed from carbon steel, it features a female SAE 45-degree swivel end for secure connection to line, hose, or tube.

This fitting offers reliable performance, cuts assembly times, and boosts production efficiency. The hex size 2 measures 1.12, and the drop dimension is 0.7800. Hose dash size -12.

SKU: FC9341-1212S

Supplier Part Number (MPN): FC9341-1212S

Specifications

Brand Danfoss	a Dimensions 2.86 in	Angle Shape 45 deg	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female SAE Flared Swivel, Hose	Connection Type 1 Female SAE 45 deg Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 2.21 in	Dimensions 2.86 in L x 2.21 in W x 0.78 in H	Drop Dimensions 1 in	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With 2807 and FC465 Series Hoses	Hex Size 1-1/4 x 1-1/8 in	Hose Dash Size 12	Inside Diameter 0.59 in	Material Steel	Material Construction Carbon Steel	Series FC9341 Series	Thread Sealant Without Thread Sealant	Thread Size 1-1/16-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Type 2	Hose Dash Size
190772-6S Steel Reusable JIC Teflon Fitting	3/8 in	3/8 in	Female SAE 37 deg JIC Swivel	06
190772-12S Steel Reusable JIC Teflon Fitting	3/4 in	3/4 in	Female SAE 37 deg JIC Swivel	12
190772-10S Steel Reusable JIC Teflon Fitting	5/8 in	5/8 in	Female SAE 37 deg JIC Swivel	10
190772-16S Steel Reusable JIC Teflon Fitting	1 in	1 in	Female SAE 37 deg JIC Swivel	16
FC9171-0606S Steel Reusable JIC Teflon Fitting	3/8 in	3/8 in	Female SAE 45 deg Swivel	06
190772-8S Steel Reusable JIC Teflon Fitting	1/2 in	1/2 in	Female SAE 37 deg JIC Swivel	08
190772-4S Steel Reusable JIC Teflon Fitting	1/4 in	1/4 in	Female SAE 37 deg JIC Swivel	04
190742-10S	5/8 in	5/8 in	Female SAE 37 deg JIC Swivel	10
190772-3S	3/16 in	3/16 in	Female SAE 37 deg JIC Swivel	03
190772-5S	5/16 in	5/16 in	Female SAE 37 deg JIC Swivel	05
FC9171-1212S	3/4 in	3/4 in	Female SAE 45 deg Swivel	12
