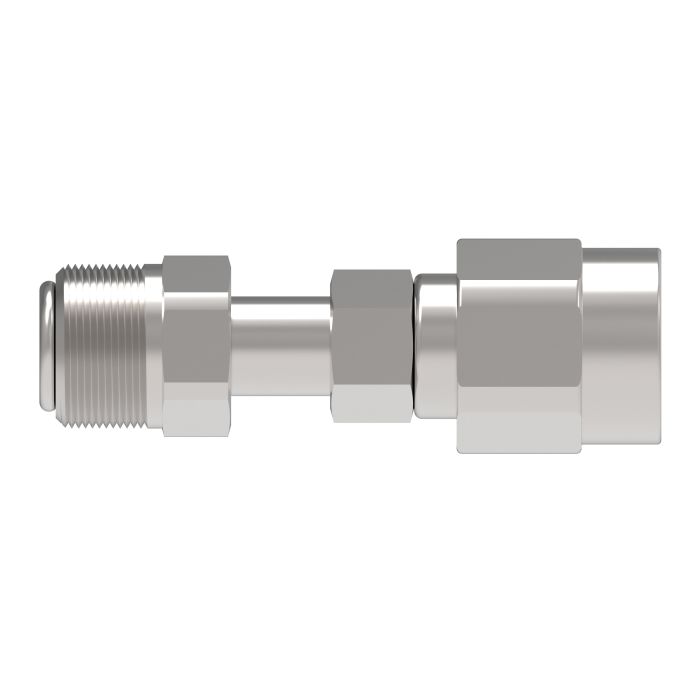

Aeroquip Fitting For FC107

Description & Features

A carbon steel fitting assembly designed for use with -6 dash size hose, this male SAE end fitting connects a hose or tube line with a 0.625-inch end size and accommodates a hex size of 1.333 inches on the second end. Part of the Aeroquip FC9395 Series, the Aeroquip Fitting For FC107 is a reusable assembly suited to a wide range of hydraulic hose applications where reliable, repeatable connections are required.

The reusable design reduces assembly time and supports higher production throughput, making it a practical choice for shops and field service work alike. Carbon steel construction provides the durability expected in demanding industrial hose assembly environments.

SKU: FC9395-0606S

Supplier Part Number (MPN): FC9395-0606S

Specifications

a Dimensions 2.35 in	Angle Shape Straight	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Hose, Male Inverted Flared	Connection Type 1 Male Inverted Flared	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.66 in	Dimensions 2.35 in L x 0.75 in W x 0.865 in H	Finish Zinc-Plated	Fitting Type Reusable Fitting	For Use With FC107 Series Hoses	Hex Size 0.629 x 0.472 in	Hose Dash Size 06	Inside Diameter 0.24 in	Material Steel	Material Construction Carbon Steel	Series FC9395 Series	Thread Sealant Without Thread Sealant	Thread Size 5/8-18

Product Questions & Answers (1)

Question by: Neal C on Jun 2, 2025, 3:54 PM

What size is the hose end on this Aeroquip fitting? I need to make sure it'll match up with what I got.

Answer by: Customer Support on Jun 4, 2025, 1:56 PM

This fitting is made for a -6 dash size hose. That should match a 0.625-inch end size, if that's what you're working with.
