Aeroquip Crimp FittingS - Code

Description & Features

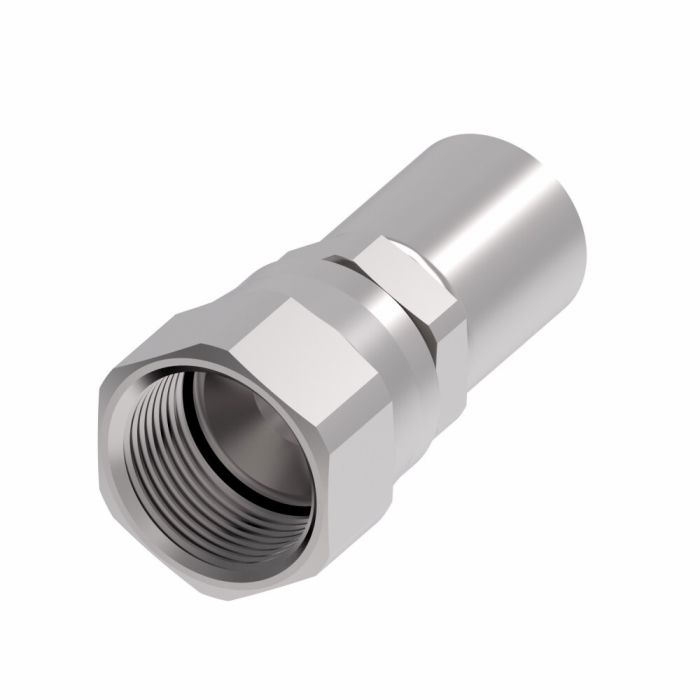

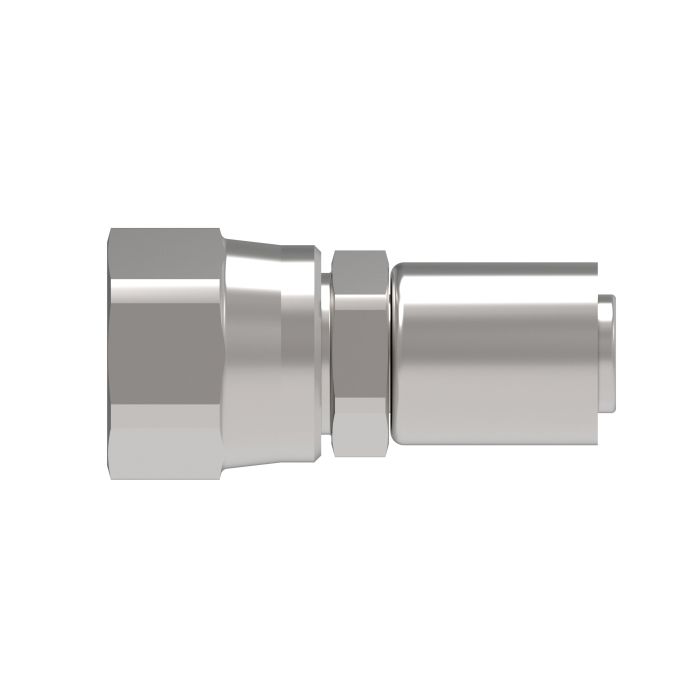

This Aeroquip Crimp Fitting features a female SAE 37° end and a female Line/Hose/Tube end.

The fitting is plated with Dura-Kote for enhanced corrosion resistance, and its innovative design delivers reliable performance and maximum uptime, extending the life of hose assemblies.

SKU: FC9779-0303S

Supplier Part Number (MPN): FC9779-0303S

Specifications

Brand Aeroquip® by Danfoss	Compatible Hose ID 0.18 in	Connection Size 1 3/16 in	Connection Size 2 3/16 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female SAE 37 deg JIC Swivel	Connection Type 2 Hose	Construction Style Crimp	Fitting Type Nipple	For Use With 2807, FC465 and S-TW Series Hoses	Hex Size 0.563 in	Hose Dash Size 03	Material Steel	Material Construction Steel	Maximum Operating Pressure 3500 psi	Operating Temperature -73 to 260 deg C	Series FC9779 Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Todd B on Nov 20, 2025, 12:43 PM

Is this here fitting gonna hold up to some vibration? I got a pump that shakes pretty good.

Answer by: Customer Support on Nov 22, 2025, 7:07 AM

Designed with performance and uptime in mind, the Aeroquip crimp fitting's innovative design should provide a reliable connection even in demanding applications.
