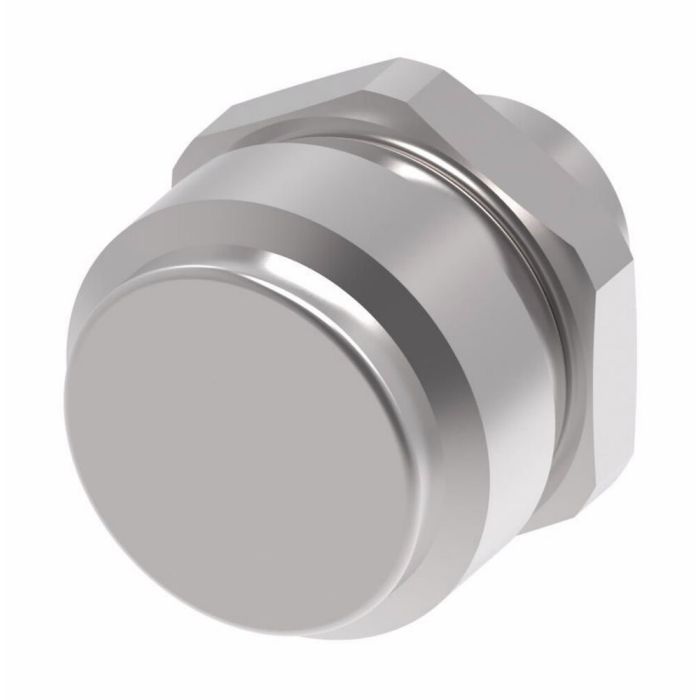

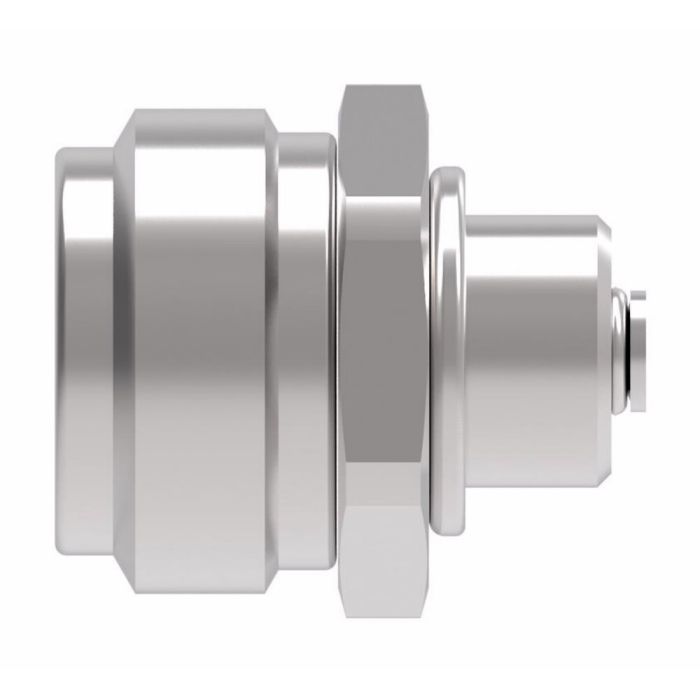

main product photo

FD14 Series Oil Drain Coupling, Male Half, M18 x 1.5 6g Thread

Ask A Question

Description & Features

Designed for automated and gravity drain oil evacuation systems the FD14 Series Oil Drain Coupling Male Half M18 x 1.5 6g Thread boasts a low-profile design incorporating multiple sealing mechanisms. The coupling features a push-to-connect socket/female half facilitating single-handed operation.

The coupling utilizes a copper-crush gasket to seat against the port face ensuring a robust seal. Standard plug/male half seals are made of FKM while socket/female half seals are constructed from Buna-N.

Broad compatibility is achieved through a wide range of standard thread styles for the plug/male half. Constructed from high resistance carbon steel with zinc trivalent plating the body material promises durability and reliability. Additionally the coupling's minimum working temperature is -40 degrees.

MPN: FD14-4002-02-06

Supplier Part Number: FD14-4002-02-06

Specifications

A
1.52
Application
Automated oil evacuation systems. Gravity drain oil evacuation systems.
B
0.96
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Size 1
0.38
End Size 2
0.38
End Type 1
Metric
Minimum Working Temperature
-40
Rated Flow
0.24
Rated Flow
0.24
Seal Part if Included
22046-8
Supplier Part Number
FD14-4002-02-06
Thread 1
M18 x 1.5 6g
Thread Sealant
No
Torque Rating
20-40 lb-ft
Torque Rating
20-40 lb-ft
Alternate Part Numbers
Alternate Part Number C1EK53, Alternate Part Number FCM3127, Alternate Part Number MI-06230881, Alternate Part Number MINO-00402X01635
Product Weight
0.01 lbs

Related Documents

Similar Products

Model Number Thread 1 Torque Rating Rated Flow A B Price Action
FD14 Series Oil Drain Coupling, Male Half, M18 x 1.5 6g Thread

FD14-4002-02-06 FD14 Series Oil Drain Coupling

M18 x 1.5 6g

20-40 lb-ft

0.24

1.52

0.96

FD14 Series Oil Drain Coupling, Male Half, 1-1/8-12 UNF-2A Thread

FD14-4002-14-06 FD14 Series Oil Drain Coupling

1-1/8-12 UNF-2A

30-60 lb-ft

0.68

1.54

0.96

FD14 Series Oil Drain Coupling, Male Half, M25 x 1.5 6g Thread

FD14-4002-17-06 FD14 Series Oil Drain Coupling

M25 x 1.5 6g

30-60 lb-ft

0.68

1.54

0.96

FD14 Series Oil Drain Coupling, Male Half, M22 x 1.5 6g Thread

FD14-4002-18-06 FD14 Series Oil Drain Coupling

M22 x 1.5 6g

30-60 lb-ft

0.68

1.54

0.96

Product Questions & Answers (2)

Question by: Warren O on Aug 18, 2025, 9:24 PM
Can this be used for both automated and gravity drain oil evacuation systems?
Answer by: Customer Support on Aug 20, 2025, 8:08 AM
That's right, this oil drain coupling is designed for both automated and gravity drain oil evacuation systems.
Question by: Darryl M on Feb 8, 2026, 8:51 AM
got an M18 x 1.5 port on my drain setup, is this the right male half and does it seal off the face with a crush washer?
Answer by: Customer Support on Feb 9, 2026, 3:38 PM
Made for an M18 x 1.5 6g threaded port, this is the FD14 Series male half (plug) that seats on the port face using a copper crush gasket. That gasket is what gives you the face seal when you tighten it down.
