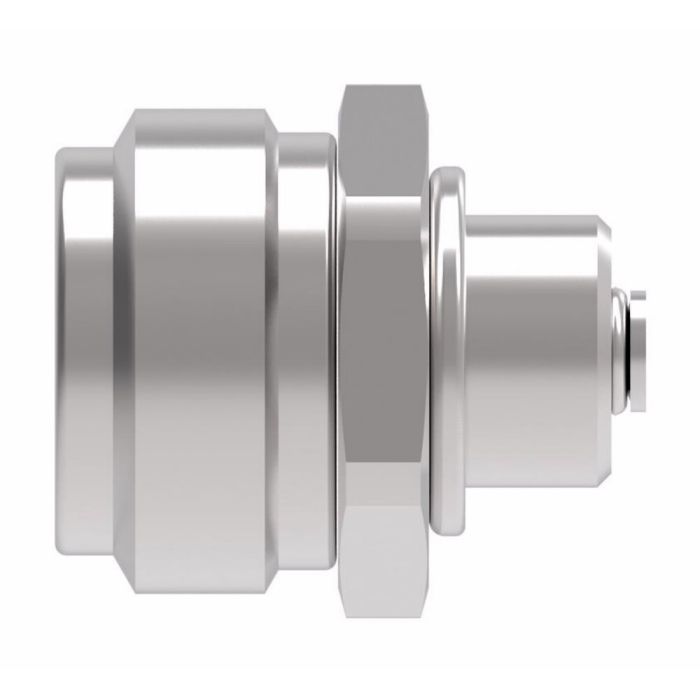

main product photo

FD14 Series Oil Drain Coupling, Male Half, 1-1/8-12 UNF-2A Thread

Ask A Question

Description & Features

The Eaton Aeroquip FD14 Series Oil Drain Coupling features a low-profile design with multiple sealing mechanisms. The push-to-connect socket/female half allows for easy one-hand connection, while the broad range of standard thread styles are designed for the plug/male half.

This FD14 Series Oil Drain Coupling, Male Half, features a 1-1/8-12 UNF-2A thread and utilizes a copper-crush gasket to seat against the port face. The standard plug/male half seal material is FKM, and the standard socket/female half seal material is Buna-N. The standard body material is high-resistance carbon steel with zinc trivalent plating and a zinc die-cast valve.

SKU: FD14-4002-14-06

Supplier Part Number (MPN): FD14-4002-14-06

Alternate Part Numbers: C1EK87, MI-06169068, MINO-00015F18329

Specifications

A
1.54
B
0.96
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Type 1
UNF
Rated Flow
0.68
Rated Flow
0.68
Seal Part if Included
22046-110
Supplier Part Number
FD14-4002-14-06
Thread 1
1-1/8-12 UNF-2A
Thread Sealant
No
Torque Rating
30-60 lb-ft
Torque Rating
30-60 lb-ft
Alternate Part Numbers
Alternate Part Number C1EK87, Alternate Part Number MI-06169068, Alternate Part Number MINO-00015F18329
Product Weight
0.38 lbs

Related Documents

Similar Products

Model Number Thread 1 Torque Rating Rated Flow A B Price Action
FD14 Series Oil Drain Coupling, Male Half, M18 x 1.5 6g Thread

FD14-4002-02-06 FD14 Series Oil Drain Coupling

M18 x 1.5 6g

20-40 lb-ft

0.24

1.52

0.96

FD14 Series Oil Drain Coupling, Male Half, 1-1/8-12 UNF-2A Thread

FD14-4002-14-06 FD14 Series Oil Drain Coupling

1-1/8-12 UNF-2A

30-60 lb-ft

0.68

1.54

0.96

FD14 Series Oil Drain Coupling, Male Half, M25 x 1.5 6g Thread

FD14-4002-17-06 FD14 Series Oil Drain Coupling

M25 x 1.5 6g

30-60 lb-ft

0.68

1.54

0.96

FD14 Series Oil Drain Coupling, Male Half, M22 x 1.5 6g Thread

FD14-4002-18-06 FD14 Series Oil Drain Coupling

M22 x 1.5 6g

30-60 lb-ft

0.68

1.54

0.96

Product Questions & Answers (1)

Question by: Larry S on Sep 13, 2025, 11:56 AM
got a port that’s 1-1/8-12 UNF, is this the right male half and what’s it seal with
Answer by: Customer Support on Sep 15, 2025, 6:23 AM
The male half on this FD14 coupling is threaded 1-1/8-12 UNF-2A. It seals to the port face using a copper-crush gasket, and the standard seal material on the plug (male half) itself is FKM.
