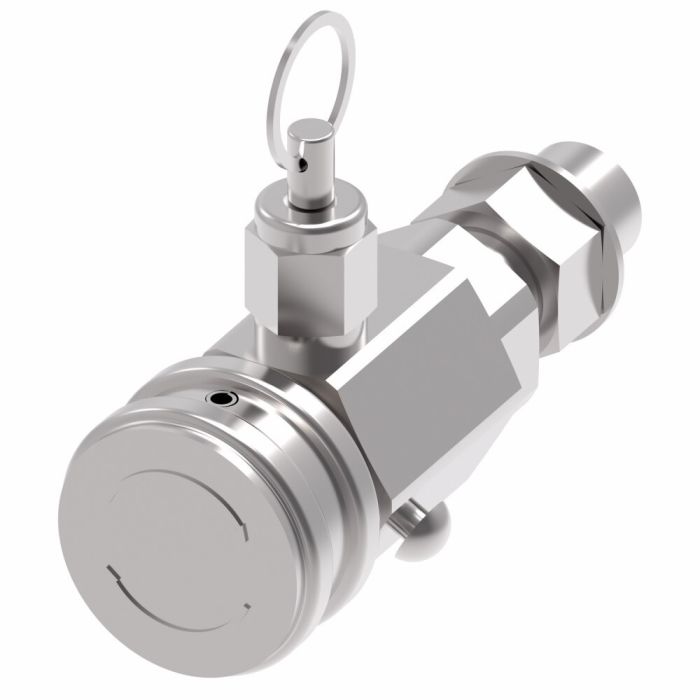

This carbon steel quick disconnect coupling is suitable for use with engine oil, lubricating oil, transmission fluid and hydraulic fluids. The DANFOSS / EATON COUPLINGS - CODE CP features quick connect and disconnect functionality, eliminating the need for special tools.
This Eaton/Hansen FD15 series coupling features male NPTF end gender 1 with a 0.125" end size 1, and male UNF end gender 2 with a 0.3125" end size 2, as well as Buna-N seals.
SKU: FD15-1000-02
Supplier Part Number (MPN): FD15-1000-02
|
Alternate Part Numbers
MINO-00015X11095
|
Application
Engine oil, Lubricating oil, Transmission fluid and hydraulic fluids
|
Compliances
MIL-V-81940/2-1
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.13
|
End Size 2
0.31
|
End Type 1
NPTF
|
End Type 2
UNF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Hex Size 2
0.38
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Complete
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
5/16
|
Product Material
Carbon Steel
|
Product Width
1
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD15-1000-02
|
Product Weight
0.29 lbs
|
