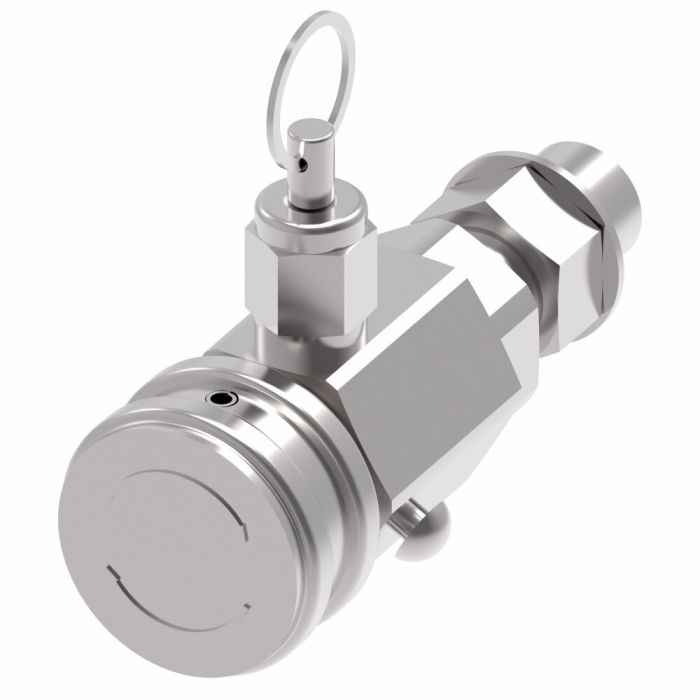

Designed for fluid sampling in engine oil, lubricating oil, transmission fluid, and hydraulic fluid circuits, this carbon steel quick disconnect coupling features a male NPTF end on one side and a male UNF thread connection on the other. The 5/16-inch port size and Buna-N seals make it well suited for use across a range of industrial fluid systems requiring routine sampling access.
The Danfoss / Eaton Male Pipe Thread Sampling valve belongs to the Hansen FD15 Series and connects via a thread-to-connect mechanism, no special tools required. It meets MIL-V-81940/2-1 compliance and exceeds ISO 16028 operating pressure requirements. Rated for a minimum working temperature of -65°F, it performs reliably in demanding temperature environments.
SKU: FD15-1000-04
Supplier Part Number (MPN): FD15-1000-04
|
Alternate Part Numbers
MINO-00402X03055
|
Application
Engine oil, Lubricating oil, Transmission fluid and hydraulic fluids
|
Compliances
MIL-V-81940/2-1
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.25
|
End Size 2
0.31
|
End Type 1
NPTF
|
End Type 2
UNF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Hex Size 2
0.38
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Complete
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
5/16
|
Product Material
Carbon Steel
|
Product Width
1
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD15-1000-04
|
Product Weight
0.31 lbs
|
