Designed for quick connect and disconnect without special tools, this carbon steel coupling handles engine oil, lubricating oil, transmission fluid, and hydraulic fluids across a wide temperature range starting at -65°F minimum. It meets MIL-V-81940/2-1 compliance and exceeds ISO 16028 operating pressures, making it well suited for demanding fluid handling circuits in mobile and industrial equipment.

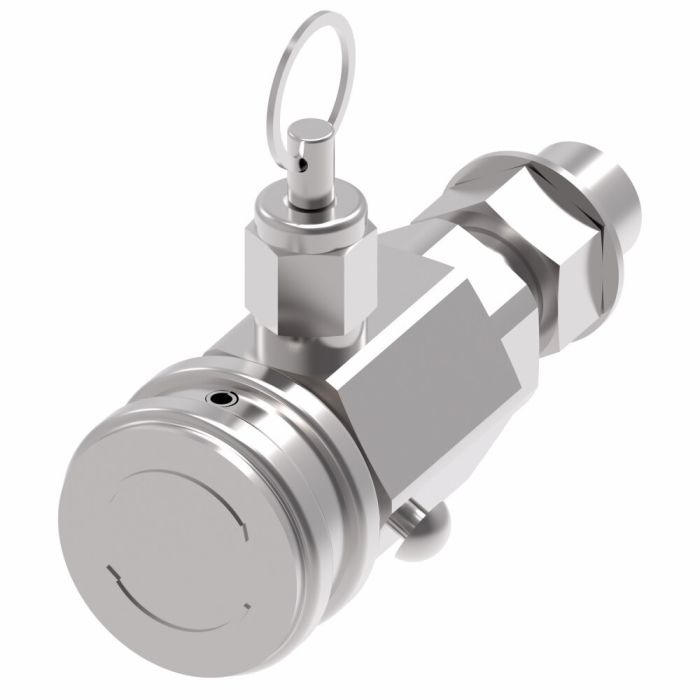

The Danfoss / Eaton Hansen FD15 Series coupling features a 5/16 port size with a male UNC end (0.4375 in.) and a male ORB end (0.3125 in.), connected via a thread-to-connect internal mechanism. Buna-N seals provide reliable fluid compatibility across its listed media types. The two-way valve configuration allows controlled flow in both directions.
Supplied complete as a single assembly under the Aeroquip and Hansen sub-brands, this is a direct replacement or new-installation option for systems requiring MIL-spec rated quick disconnect performance.
SKU: FD15-1002-04
Supplier Part Number (MPN): FD15-1002-04
|
Alternate Part Numbers
MINO-00015X11096
|
Application
Engine oil, Lubricating oil, Transmission fluid and hydraulic fluids
|
Compliances
MIL-V-81940/2-1
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.44
|
End Size 2
0.31
|
End Type 1
UNC
|
End Type 2
ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Hex Size 2
0.38
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Complete
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
5/16
|
Product Material
Carbon Steel
|
Product Width
1
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD15-1002-04
|
Valve Type
2 way
|
Product Weight
0.30 lbs
|
