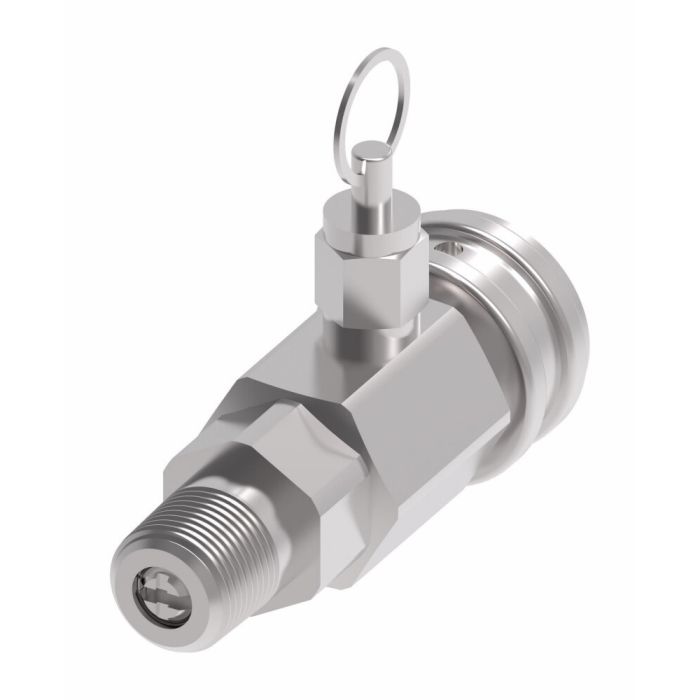

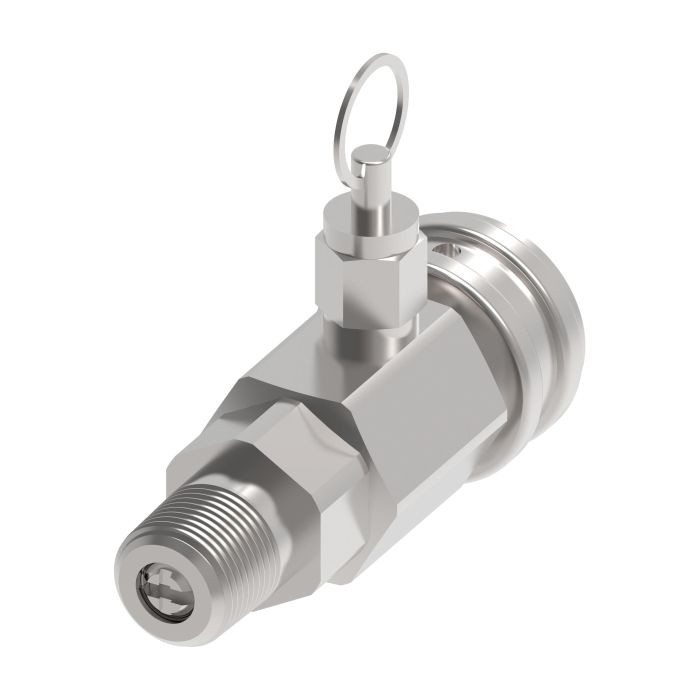

Designed for use with engine oil, lubricating oil, transmission fluid, and hydraulic fluids, this carbon steel quick disconnect coupling from the Eaton Aeroquip Hansen FD15 Series connects via a thread-to-connect mechanism without requiring special tools. The male-to-male configuration features a 7/16" UNC end on one side and a 5/16" ORB end on the other, with a Buna-N seal for reliable fluid compatibility across a broad temperature range starting as low as -65°F.
The Danfoss / Eaton Couplings - Code Cp meets MIL-V-81940/2-1 compliance requirements and exceeds ISO 16028 operating pressures, making it well suited for demanding industrial and mobile hydraulic applications. The Hansen sub-brand backing and Eaton Aeroquip engineering combine to deliver a complete coupling assembly rated for consistent performance in fluid transfer circuits where fast, tool-free connections are required.
SKU: FD15-1026-04
Supplier Part Number (MPN): FD15-1026-04
|
Alternate Part Numbers
MINO-00925X12634
|
Application
Engine oil, Lubricating oil, Transmission fluid and hydraulic fluids
|
Compliances
MIL-V-81940/2-1
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.44
|
End Size 2
0.31
|
End Type 1
UNC
|
End Type 2
ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Hex Size 2
0.38
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Complete
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
5/16
|
Product Material
Carbon Steel
|
Product Width
1
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD15-1026-04
|
Product Weight
0.30 lbs
|
