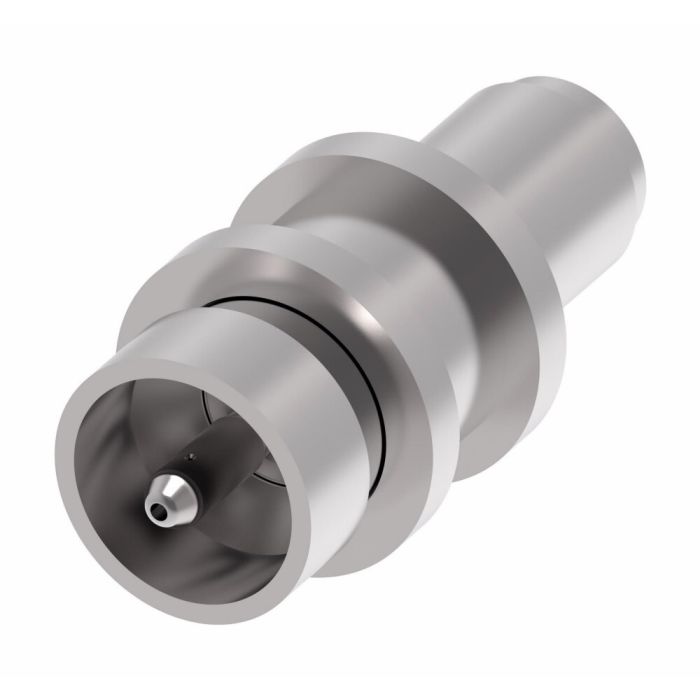

This Danfoss / Eaton Coupling FD17 Series female half is designed for quick connect and disconnect applications, eliminating the need for special tools. Constructed from stainless steel and aluminum, it features BUNA seals and a 7/16 port size.
Well-suited for SCBA transfilling and buddy-breathing applications, this coupling meets NFPA 2013 and NFPA 1981 certifications and exceeds ISO 16028 operating pressures. It offers a flow rate of 32.5 gallons per minute and is designed to function in minimum working temperatures as low as -40 degrees.
SKU: FD17-1003-04-04
Supplier Part Number (MPN): FD17-1003-04-04
|
Alternate Part Numbers
MINO-00015X11098
|
Application
SCBA transfilling and buddy-breathing applications
|
Certifications
NFPA 2013|NFPA 1981
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.44
|
End Type 1
Push to Connect
|
End Type 2
ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
32.5 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
7/16
|
Product Material
Stainless Steel; Aluminum
|
Product Width
1.38
|
Sub Brand
Hansen
|
Supplier Part Number
FD17-1003-04-04
|
Product Weight
0.28 lbs
|
