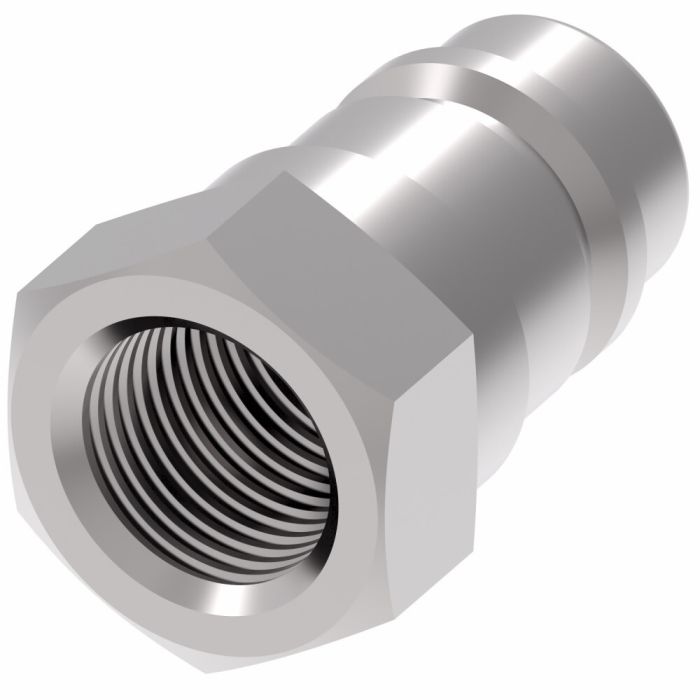

This quick connect DANFOSS / EATON COUPLING is constructed of carbon steel with FKM seals, and features a sleeve lock safety locking mechanism. The coupling is designed for 10,000 psi hydraulic applications, including use with hydraulic tools, rams, and work loading equipment.
This push-to-connect coupling exceeds ISO 16028 operating pressures, and features a ball lock internal connection. Benefit from quick connect and disconnect without the need for special tools. It has a 9/16 port size, a minimum working temperature of -30, and measures 0.94 inches in width. End 1 is male, end type is Push to Connect. End 2 is female, end type is SAE, and end size is 0.5625.
SKU: FD35-1008-06-06
Supplier Part Number (MPN): FD35-1008-06-06
|
Alternate Part Numbers
MINO-00402X03096
|
Application
10,000 psi hydraulic applications, Hydraulic tool, Hydraulic ram and work loading
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.56
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
2 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-30
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
9/16
|
Product Material
Carbon Steel
|
Product Width
0.94
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
FD35-1008-06-06
|
Product Weight
0.19 lbs
|
