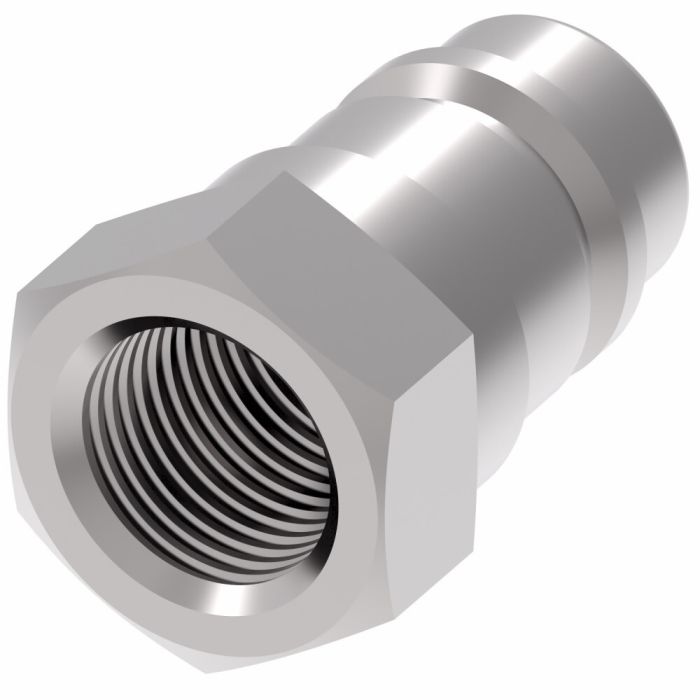

Designed for rigorous 10,000 psi hydraulic applications, the Danfoss / Eaton Coupling is a robust solution ideal for hydraulic tools and rams. This coupling features a quick connect and disconnect mechanism, eliminating the need for special tools, and it exceeds ISO 16028 operating pressures, ensuring dependable performance in demanding environments. Manufactured from durable carbon steel and equipped with FKM seals, this coupling withstands temperatures as low as -30°F, making it suitable for various industrial contexts.
The coupling's female half design includes a ball lock internal connection type and a sleeve lock safety mechanism, providing secure and efficient connections. With a flow rate of 2 gallons per minute and compatibility with a range of hydraulic fluids, this coupling is versatile and reliable. The push-to-connect end type and SAE compatibility ensure easy integration into existing systems.
SKU: FD35-1051-06-06
Supplier Part Number (MPN): FD35-1051-06-06
|
Alternate Part Numbers
MINO-00015X11103
|
Application
10,000 psi hydraulic applications, Hydraulic tool, Hydraulic ram and work loading
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.56
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
2 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-30
|
Port Size
9/16
|
Product Material
Carbon Steel
|
Product Width
1.27
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
FD35-1051-06-06
|
Product Weight
0.22 lbs
|
