Danfoss / Eaton AIR COUP F Half 1/4FP

Ask A Question

Description & Features

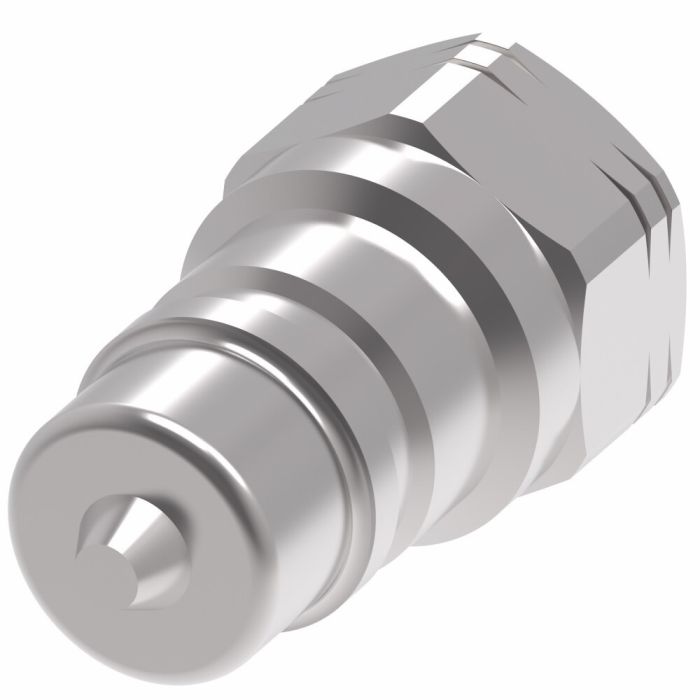

This male half quick disconnect coupling is part of the Danfoss / Eaton AIR COUP F Half 1/4FP series and is designed for hydraulic and fluid transfer applications, including hydraulic tool (HTMA interchange) use. It features a push-to-connect design with a ball lock internal connection, allowing for quick connection and disconnection without the need for special tools. This coupling exceeds ISO 16028 operating pressures.

Constructed from carbon steel with Buna-N seals, this 2-way valve type coupling has a 1/4 inch port size and a flow rate of 3 gallons per minute. It is designed to function in minimum working temperatures as low as -40 degrees. This coupling features both male and female ends.

SKU: FD48-1002-04-04

Supplier Part Number (MPN): FD48-1002-04-04

Specifications

Application
Hydraulic tool (HTMA interchange), Hydraulic and fluid transfer
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 2
0.25
End Type 1
Push to Connect
End Type 2
NPT
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
3 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Ball Lock
Item Type
Male Half
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
50
Port Size
1/4
Product Material
Carbon Steel
Product Width
0.75
Seal Material
Buna-N
Sub Brand
Hansen
Supplier Part Number
FD48-1002-04-04
Valve Type
2 way
Product Weight
0.09 lbs

Related Documents

Product Questions & Answers (1)

Question by: Duane S on Jan 2, 2026, 6:43 AM
Can this be used with any hydraulic tool that meets the HTMA interchange standards?
Answer by: Customer Support on Jan 3, 2026, 5:32 PM
Yes, this male half quick disconnect coupling is indeed designed for hydraulic and fluid transfer applications, including those using hydraulic tools with HTMA interchange standards.
