main product photo

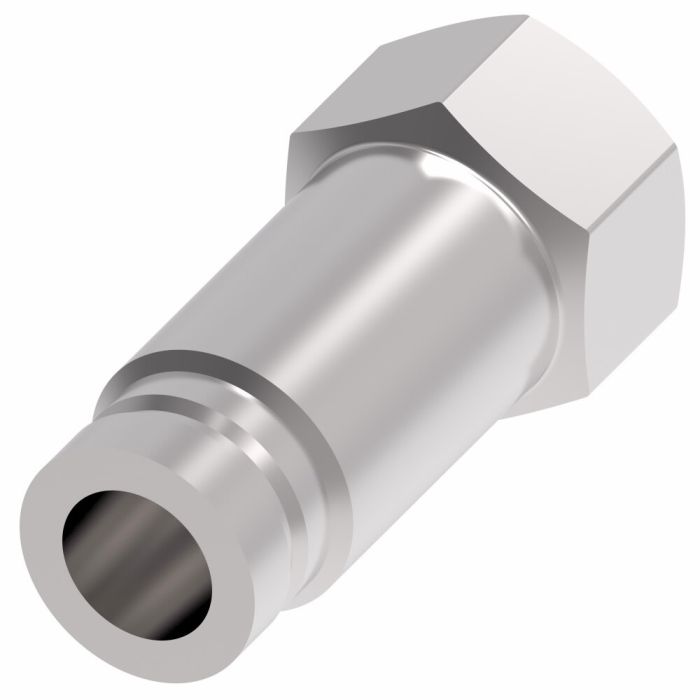

Danfoss / Eaton QUICK COUP MAL E Half

Ask A Question

Description & Features

This Danfoss / Eaton QUICK COUP MAL E Half is a male half quick disconnect coupling designed for hydraulic and fluid transfer applications, particularly with hydraulic tools using HTMA interchange standards.

The FD49 series coupling features a push-to-connect design for quick and easy connections without special tools, and exceeds ISO 16028 operating pressures. Constructed from carbon steel with Buna-N seals, it ensures reliable performance in demanding conditions. This 2-way valve coupling has a 1/2 inch port size, a flow rate of 10 gallons per minute and includes a push button safety locking mechanism.

SKU: FD49-1002-08-06

Supplier Part Number (MPN): FD49-1002-08-06

Alternate Part Numbers: C1CU30

Specifications

Brand
Danfoss
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
FNPT, Male Quick-Disconnect
Connection Type 1
Male Quick Disconnect
Connection Type 2
Female NPT
Dimensions
2-3/4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Coupling
Hex Size
1.06 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3000 psi
nmfc
50
Safety Locking Mechanism
Pushbutton
Seal Material
NBR
Series
FD49 Series
Thread Size
1/2-14
Valve Type
2-Way

Product Questions & Answers (1)

Question by: Lynn C on Jul 27, 2025, 1:52 PM
Hey, would this fitting work alright on my hydraulic tool that uses the HTMA standard?
Answer by: Customer Support on Jul 28, 2025, 7:08 PM
This Danfoss/Eaton quick disconnect is indeed made for hydraulic tools using the HTMA interchange standards, so it should fit your tool just fine.
