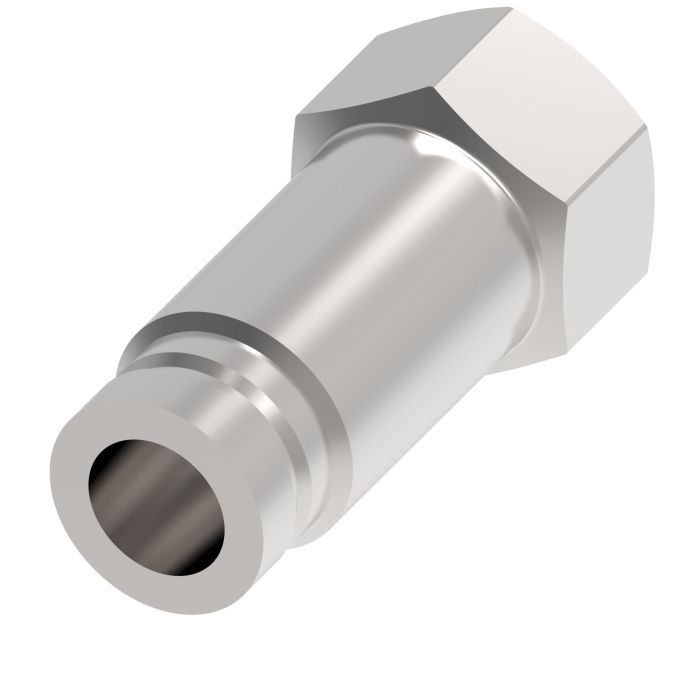

Designed for hydraulic tool and fluid transfer applications, this 3/4-inch male half quick disconnect coupling is part of the Danfoss / Eaton Couplings - Code Cp line from the Hansen sub-brand under the Aeroquip family. Constructed from carbon steel with a Buna-N seal, it is built to handle the demands of HTMA interchange service and meets NFPA Standard T3.20.15 for confirmed interchangeability across compatible systems.
Connection and disconnection require no special tools, with a push-button safety locking mechanism and ball lock internal connection providing reliable retention during use. The SAE-threaded female end mates to a male port, supporting a rated flow of 10 gallons per minute and a two-way valve configuration. Rated for use down to -30°F minimum working temperature, this coupling exceeds ISO 16028 operating pressure requirements for its class.
SKU: FD49-1004-08-06
Supplier Part Number (MPN): FD49-1004-08-06
|
Alternate Part Numbers
MINO-00402X03131
|
Application
Hydraulic tool (HTMA interchange), Hydraulic and fluid transfer
|
Certifications
NFPA Standard T3.20.15 HTMA Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 1
0.75
|
End Type 1
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
10 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-30
|
NMFC
50
|
Port Size
3/4
|
Product Material
Carbon Steel
|
Product Width
1.06
|
Safety locking Mechanism
Push Button
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD49-1004-08-06
|
Valve Type
2 way
|
Product Weight
0.38 lbs
|
