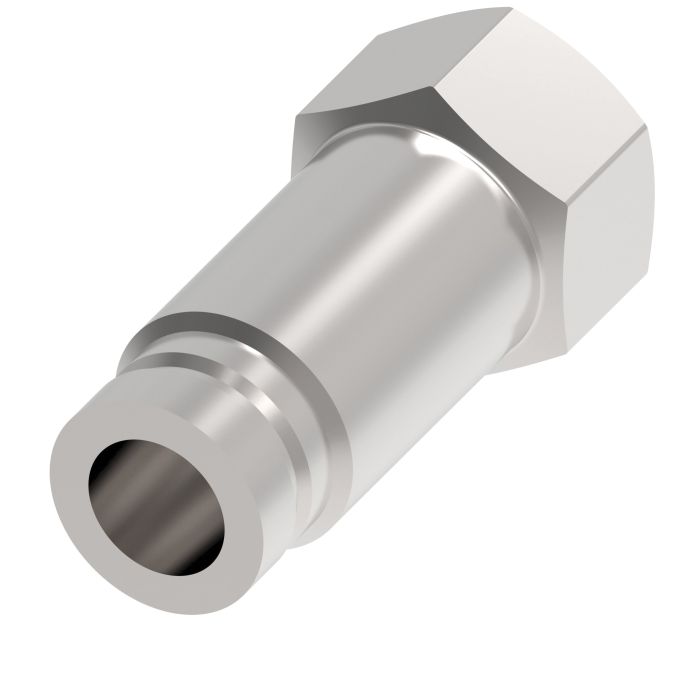

Designed for hydraulic tool circuits and fluid transfer applications, this carbon steel female half coupling features a 3/8 in. port with a 3/4 in. ORB end and connects to a 3/8 in. female end via a ball lock mechanism. The push-button safety locking mechanism supports fast, tool-free connect and disconnect cycles, making it well suited for high-cycle hydraulic tool environments. Flow capacity reaches 10 gallons per minute, and the coupling meets NFPA Standard T3.20.15 for HTMA interchange, exceeding ISO 16028 operating pressure requirements.
Part of the Danfoss / Eaton Couplings - Code Cp lineup under the Hansen sub-brand, this two-way valve socket uses Buna-N seals and is rated for a minimum working temperature of -30°F. The ORB port configuration suits common hydraulic circuit connections, and carbon steel construction supports demanding industrial service conditions. Fluid compatibility documentation is available from Eaton for reference when selecting for specific media.
SKU: FD49-1005-08-06
Supplier Part Number (MPN): FD49-1005-08-06
Alternate Part Numbers: C1GL75
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1GL75, Alternate Part Number MINO-00925X17675
Application
Hydraulic tool (HTMA interchange), Hydraulic and fluid transfer
Certifications
NFPA Standard T3.20.15 HTMA Interchange
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.75
End Size 2
0.38
End Type 1
ORB
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
