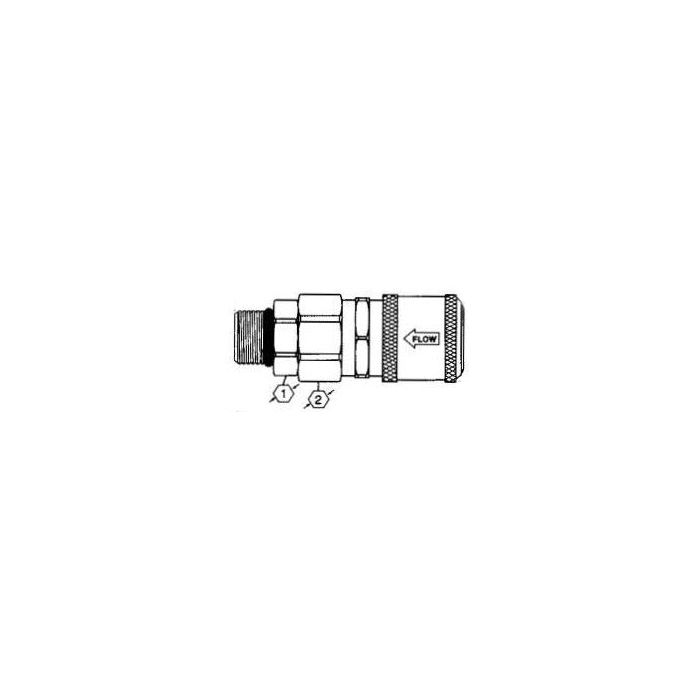

main product photo

DANFOSS / EATON COUPLING

Ask A Question

Description & Features

Designed for hydraulic tool applications and fluid transfer, the Danfoss / Eaton Coupling is a reliable choice for industrial needs. This coupling features quick connect and disconnect capabilities without the need for special tools, enhancing efficiency in demanding environments. With a Carbon Steel construction and a ball lock internal connection type, it ensures durability and secure connections. The coupling is compliant with the NFPA Standard T3.20.15 HTMA Interchange, making it suitable for various hydraulic systems. Operating effectively at temperatures as low as -30°F, it can handle a flow rate of up to 10 gallons per minute, supported by a push-button safety locking mechanism.

The coupling's design includes ORB end types, with sizes of 0.5625 and 0.375 inches, respectively, and a port size of 3/8 inches. Its sealing is ensured with a Buna-N material, providing reliable fluid containment.

SKU: FD49-1014-06-06

Supplier Part Number (MPN): FD49-1014-06-06

Specifications

Brand
Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE O-ring
Connection Type 2
Male SAE O-ring
Dimensions
3.22 in L
Finish
Zinc
Fitting Type
Coupling
Hex Size
1 in, 1.06 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Safety Locking Mechanism
Pushbutton
Seal Material
Buna-N
Segment Code
C
Series
FD49 Series
Thread Size
9/16-18
Valve Type
2-Way

Product Questions & Answers (1)

Question by: Ralph W on Apr 26, 2025, 11:37 AM
reckon this fitting here would hold up if i used it pretty steady, like most of the day?
Answer by: Customer Support on Apr 28, 2025, 6:09 AM
It's rated to handle a flow rate of up to 10 gallons per minute, and it's built with a carbon steel body, so it should be durable enough for regular use.
