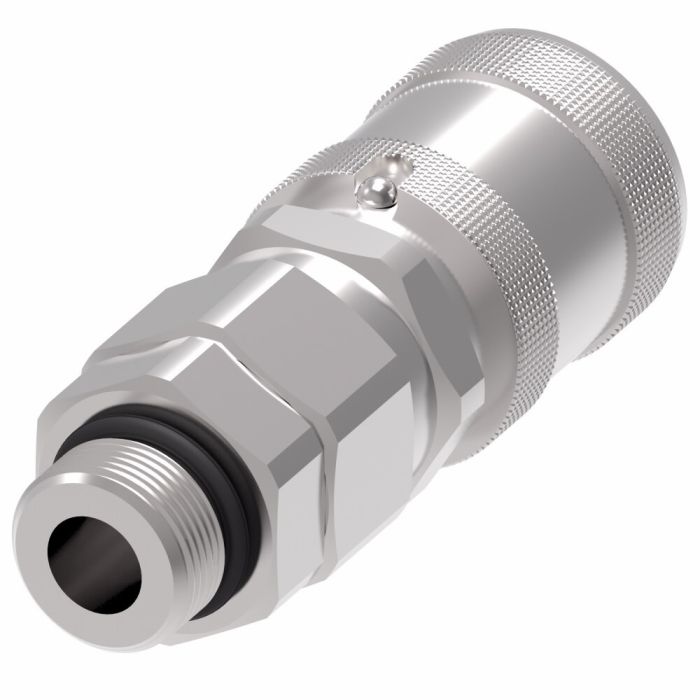

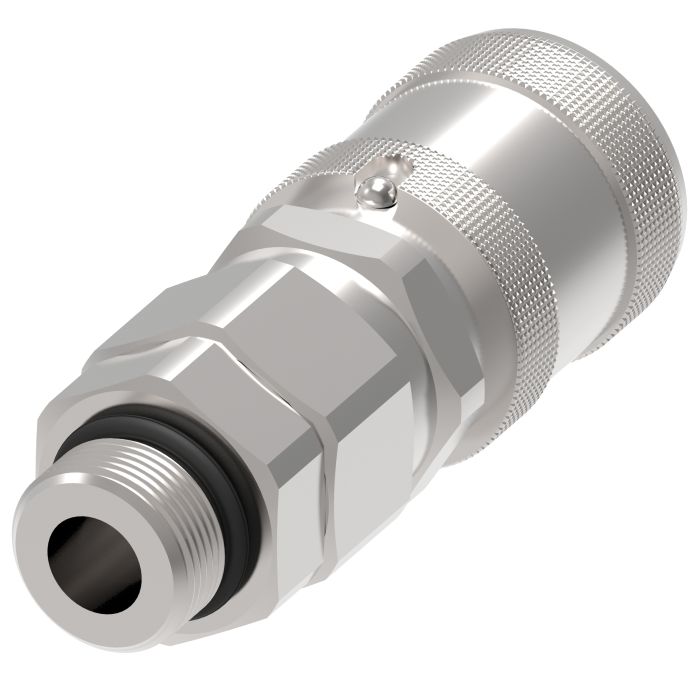

Designed for hydraulic tool circuits and fluid transfer applications, this carbon steel female half socket features a 3/8" port with a 3/4" male ORB inlet and a 3/8" female end, making it compatible with HTMA interchange configurations. The ball lock internal connection and push-button safety locking mechanism allow quick, tool-free coupling and decoupling without fluid spillage concerns.
The Danfoss / Eaton Hansen FD49 Series Quick Disconnect Coupling carries NFPA Standard T3.20.15 HTMA interchange certification and exceeds ISO 16028 operating pressures, supporting a rated flow of 10 gallons per minute. Buna-N seals provide reliable performance down to -30°F, and the two-way valve design maintains system integrity when disconnected. The 1.06" hex on the female end simplifies installation with standard tooling.
SKU: FD49-1014-08-06
Supplier Part Number (MPN): FD49-1014-08-06
|
Alternate Part Numbers
MINO-00402X03134
|
Application
Hydraulic tool (HTMA interchange), Hydraulic and fluid transfer
|
Certifications
NFPA Standard T3.20.15 HTMA Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.75
|
End Size 2
0.38
|
End Type 1
ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
10 gallons per minute
|
Hex Size 2
1.06
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-30
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
3/8
|
Product Material
Carbon Steel
|
Product Width
1.20
|
Safety locking Mechanism
Push Button
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD49-1014-08-06
|
Valve Type
2 way
|
Product Weight
0.58 lbs
|
