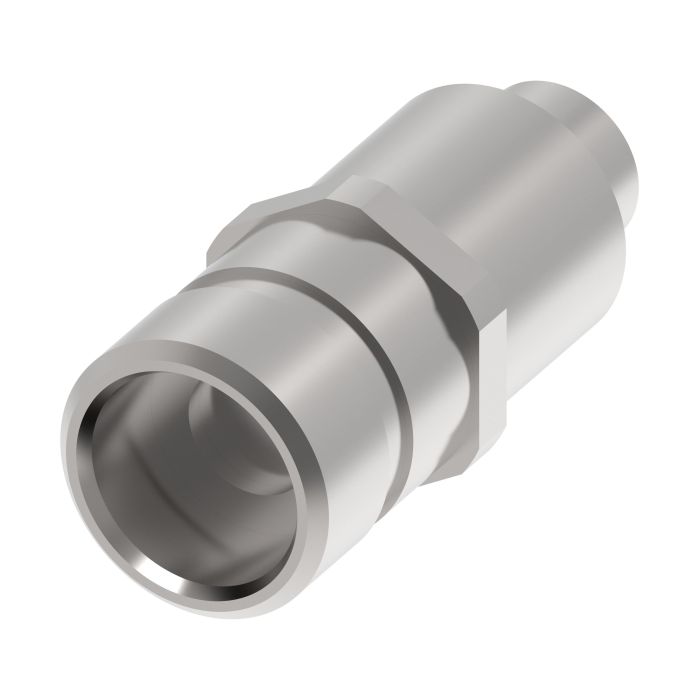

The Danfoss / Eaton FD51 Coupling Male is a reliable solution for hydraulic tool applications, offering seamless fluid transfer through its quick connect and disconnect capability. Crafted from durable brass with a Buna-N seal, this coupling ensures longevity and robust performance. The male half features a 9/16-inch port size, designed to exceed ISO 16028 operating pressures, making it suitable for demanding industrial environments.
This coupling is equipped with a push-to-connect end type on one side and an SAE connection on the other, facilitating easy integration into various systems without the need for specialized tools. The safety locking mechanism, featuring a ring lock, enhances security during operation, while the compact design with a product width of 1.03 inches and a lightweight of 0.02 lb contributes to its ease of use and handling.
SKU: FD51-1261-06-05
Supplier Part Number (MPN): FD51-1261-06-05
|
Alternate Part Numbers
MINO-00402X03155
|
Application
Hydraulic tool (HTMA interchange), Hydraulic and fluid transfer
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.56
|
End Size 2
0.56
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
ICC
Quick Disconnect Couplings
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Port Size
9/16
|
Product Material
Brass
|
Product Width
1.03
|
Safety locking Mechanism
Ring Lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD51-1261-06-05
|
Valve Type
2 way
|
Product Weight
0.24 lbs
|
