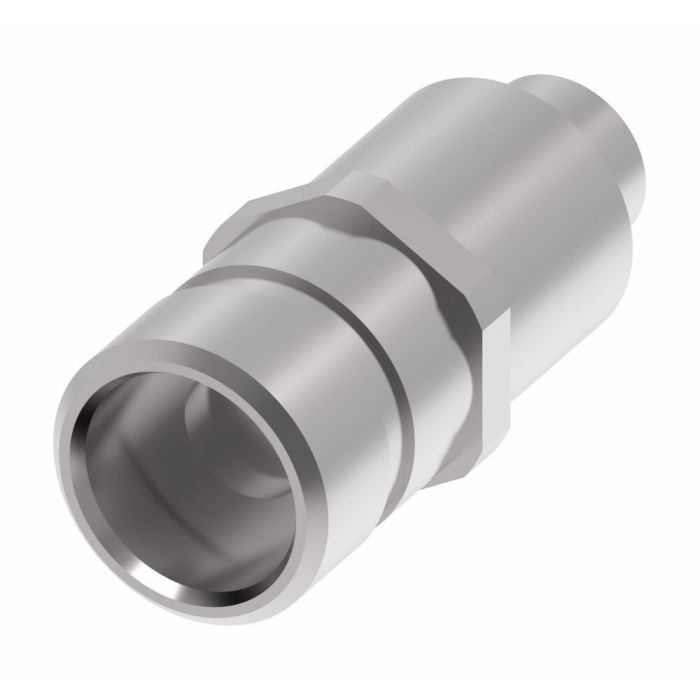

This female Danfoss / Eaton Coupling Male is part of the Hansen FD51 series of quick disconnect couplings. Constructed of brass, it is designed for hydraulic and fluid transfer applications, including use with hydraulic tools (HTMA interchange).
Features include quick connect and disconnect without the need for special tools. This coupling exceeds ISO 16028 operating pressures. It has a 1 1/2 SAE port size.
SKU: FD51-1264-24
Supplier Part Number (MPN): FD51-1264-24
|
Alternate Part Numbers
MINO-00402X01690
|
Application
Hydraulic tool (HTMA interchange), Hydraulic and fluid transfer
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Type 1
SAE
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
ICC
Quick Disconnect Couplings
|
Item Type
Female Half
|
Language
English
|
Port Size
1 1/2
|
Product Material
Brass
|
Product Width
2.82
|
Sub Brand
Hansen
|
Supplier Part Number
FD51-1264-24
|
Product Weight
2.64 lbs
|
