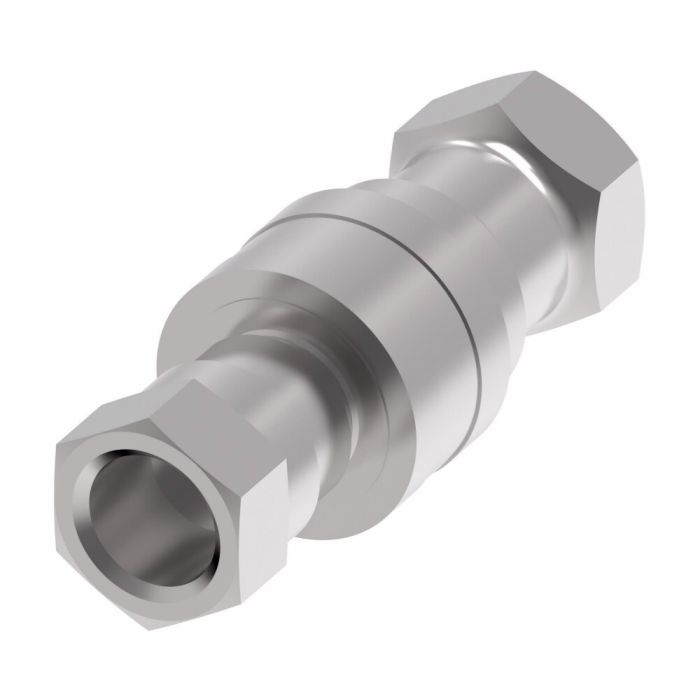

Designed for hydraulic tool (HTMA interchange) and fluid transfer applications, this carbon steel female half quick disconnect coupling from the Danfoss / Eaton Hansen FD56 Series connects and disconnects without special tools. The 1/2 in. NPTF female end pairs with a ball lock internal connection mechanism and a two-way valve configuration, supporting flow rates up to 12 gallons per minute.
FKM seals provide reliable fluid compatibility across a working temperature range starting at -15°F. The coupling meets ISO 7241-1 Series A certification and exceeds ISO 16028 operating pressure requirements, making it a dependable choice for demanding hydraulic circuits.
SKU: FD56-1001-08-10
Supplier Part Number (MPN): FD56-1001-08-10
|
Alternate Part Numbers
MINO-00015X11129
|
Application
Hydraulic tool (HTMA interchange), Hydraulic and fluid transfer
|
Certifications
ISO 7241-1 Series A
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.50
|
End Type 1
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
12 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-15
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.52
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
FD56-1001-08-10
|
Valve Type
2 way
|
Product Weight
0.80 lbs
|
