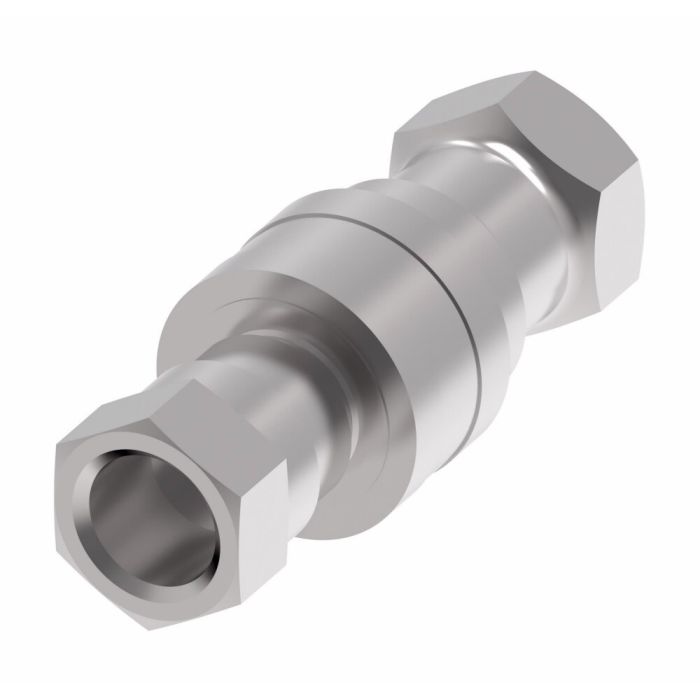

Designed for hydraulic tool circuits and fluid transfer applications, this carbon steel female half coupling from the Danfoss/Eaton Hansen FD56 Series features a 3/4 in. NPTF end connection and a ball lock internal mechanism. The two-way valve design supports flows up to 28 gallons per minute, and FKM seals provide reliable fluid compatibility across a working temperature range starting at -15°F.
The Danfoss/Eaton Coupling is certified to ISO 7241-1 Series A and is rated to exceed ISO 16028 operating pressures, making it suitable for demanding hydraulic tool (HTMA interchange) service. Quick connect and disconnect without special tools reduces downtime during coupling changes. The female half configuration integrates directly with compatible FD56 Series male halves for a secure, leak-resistant connection.
SKU: FD56-1001-12-12
Supplier Part Number (MPN): FD56-1001-12-12
|
Alternate Part Numbers
MINO-00015X11131
|
Application
Hydraulic tool (HTMA interchange), Hydraulic and fluid transfer
|
Certifications
ISO 7241-1 Series A
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.75
|
End Type 1
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
28 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-15
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.90
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
FD56-1001-12-12
|
Valve Type
2 way
|
Product Weight
1.54 lbs
|
