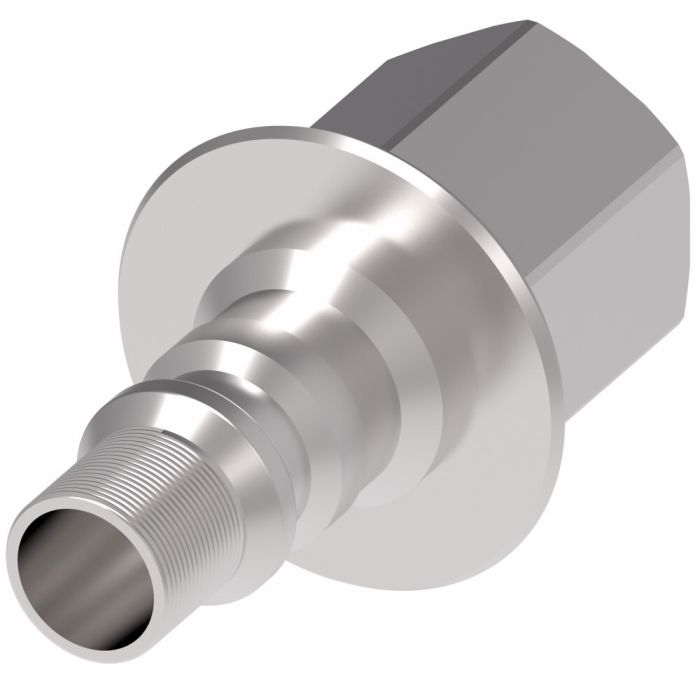

main product photo

FD69 Series Female Steel Coupling

Ask A Question

Description & Features

The Eaton Aeroquip FD69 Series Female Steel Coupling is designed for quick connect and disconnect applications, eliminating the need for special tools. Constructed from carbon steel with a Buna-N seal, this female half coupling features a sleeve lock safety mechanism and a straight-thru valve type.

This FD69 Series Female Steel Coupling is suitable for high-pressure water blast applications, bridge and concrete repair, paint stripping, and shipyards. It offers a flow rate of 45 gallons per minute and is designed with a ball lock internal connection. The coupling operates effectively in temperatures as low as -40 degrees. It has a 0.5 inch NPT female connection on both ends and exceeds ISO 16028 operating pressures.

SKU: FD69-1026-08-08

Supplier Part Number (MPN): FD69-1026-08-08

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female Quick-Disconnect, FNPT
Connection Type 1
Female Quick Disconnect
Connection Type 2
Female NPT
Dimensions
1.62 in Dia x 2.13 in L
Finish
Zinc Trivalent Chromate
Fitting Type
Coupling
Fluid Compatibility
Gas, Oil, Water
Hex Size
1-1/4
Internal Connection Type
Ball Lock
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
10000 psi
nmfc
50
Safety Locking Mechanism
Sleeve Lock
Seal Material
Buna-N
Segment Code
C
Series
FD69 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14
Valve Type
Straight

Product Questions & Answers (1)

Question by: Dustin P on Mar 10, 2026, 5:08 PM
trying to match up fittings here, are both ends on this coupling 1/2 inch female NPT?
Answer by: Customer Support on Mar 12, 2026, 11:17 AM
It has 0.5 inch NPT female threads on both ends, so you are dealing with female NPT connections on each side.
