main product photo

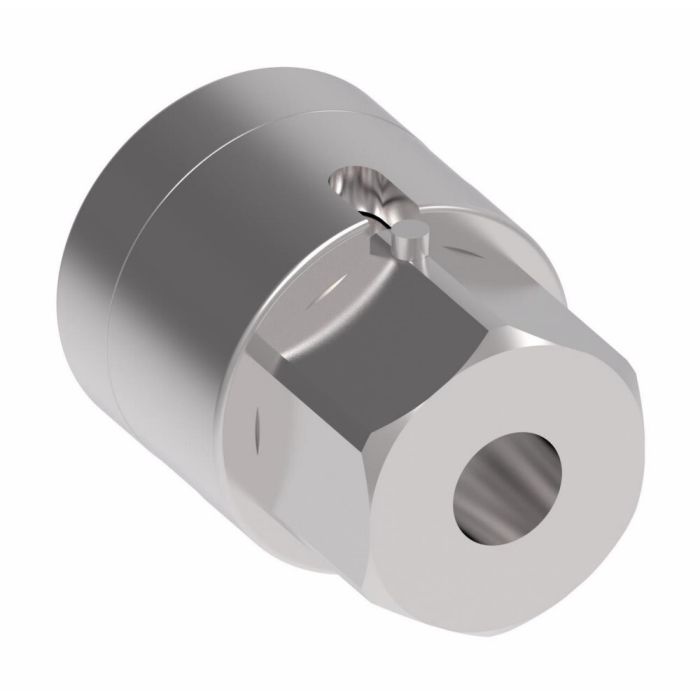

FD69 Series Arc Latch High Pressure Water Blast Quick Disconnect, Female Half, -08 Coupling, 1/2-14 Female NPT

Ask A Question

Description & Features

Designed for high pressure water blast applications, this female half quick disconnect coupling features an arc latch sleeve lock mechanism that guards against accidental disconnection under demanding conditions. The smooth bore, straight-through internal design supports high flow rates, while a heavy-duty back-up ring prevents o-ring extrusion during pressure cycles. Nitrile (Buna-N) seals are standard, and the zinc-plated steel body offers corrosion resistance suitable for shipyard, bridge repair, concrete repair, and paint stripping environments. Stainless steel configurations are also available within the Fd69 Series.

The FD69 Series Arc Latch High Pressure Water Blast Quick Disconnect, Female Half, -08 Coupling, 1/2-14 Female NPT connects via a push-to-connect interface on one end and a 1/2-14 female NPT thread on the other. It is rated for a minimum working temperature of -4°F and carries a two-way valve configuration. Manufactured by Danfoss Power Solutions under the Aeroquip product line, this coupling is cataloged under number C1CU32.

SKU: FD69-1001-08-08

Supplier Part Number (MPN): FD69-1001-08-08

Alternate Part Numbers: C1CU32

Specifications

A
2.13
Application
High pressure water blast, Bridge/concrete repair, Paint stripping, Shipyards
B
1.62
Coupling Size
-08
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPT
Minimum Working Temperature
-4
Safety locking Mechanism
Sleeve lock
Seal Material
Nitrile
Supplier Part Number
FD69-1001-08-08
Thread 1
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1CU32
Product Weight
0.68 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Action
FD69 Series Arc Latch High Pressure Water Blast Quick Disconnect, Female Half, -08 Coupling, 1/2-14 Female NPT

FD69-1001-08-08 FD69 Series Water Quick Disconnect

-08

1/2-14

Nitrile

2.13

1.62

Product Questions & Answers (3)

Question by: Debbie J on Jan 23, 2026, 7:18 PM
What size female pipe threads does this have?
Answer by: Customer Support on Jan 25, 2026, 6:37 AM
It comes with 1/2-14 female NPT threads.
Question by: Keith C on May 5, 2025, 7:49 PM
will this socket work with standard -08 high pressure fittings for water blasting
Answer by: Customer Support on May 7, 2025, 6:50 AM
Compatible with standard -08 coupling systems used in high pressure water blast applications. Features the arc latch design for secure connection and quick operation during setup or teardown of your water blasting equipment.
Question by: Peggy G on Jul 23, 2025, 8:55 AM
reckon this fd69 female half will thread right onto a standard 1/2 npt male fitting without any adapters
Answer by: Customer Support on Jul 25, 2025, 7:01 AM
Yeah, it's built with 1/2-14 female NPT threads on that -08 coupling, so it should connect directly to a matching male NPT setup for high-pressure water blast applications.
